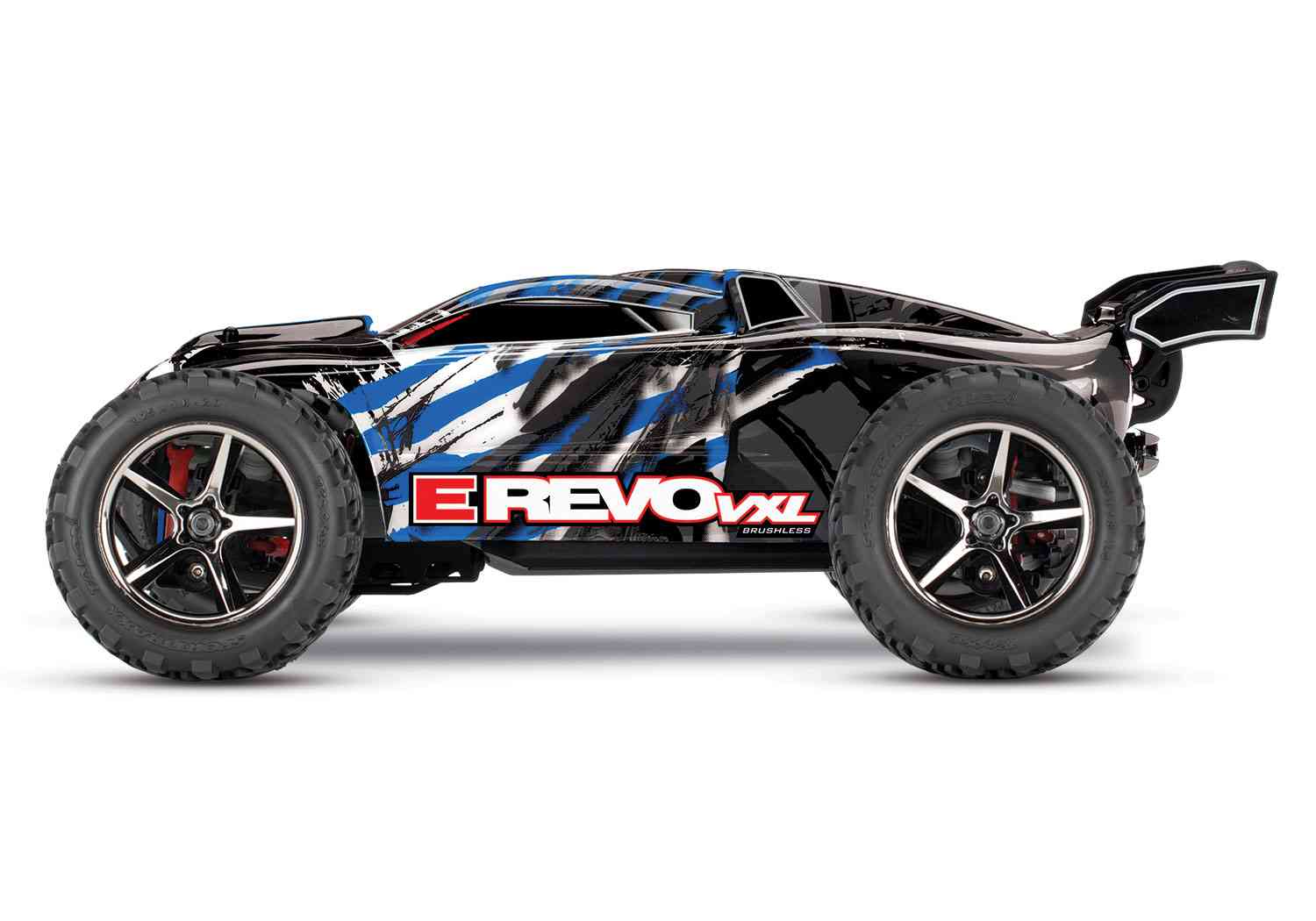

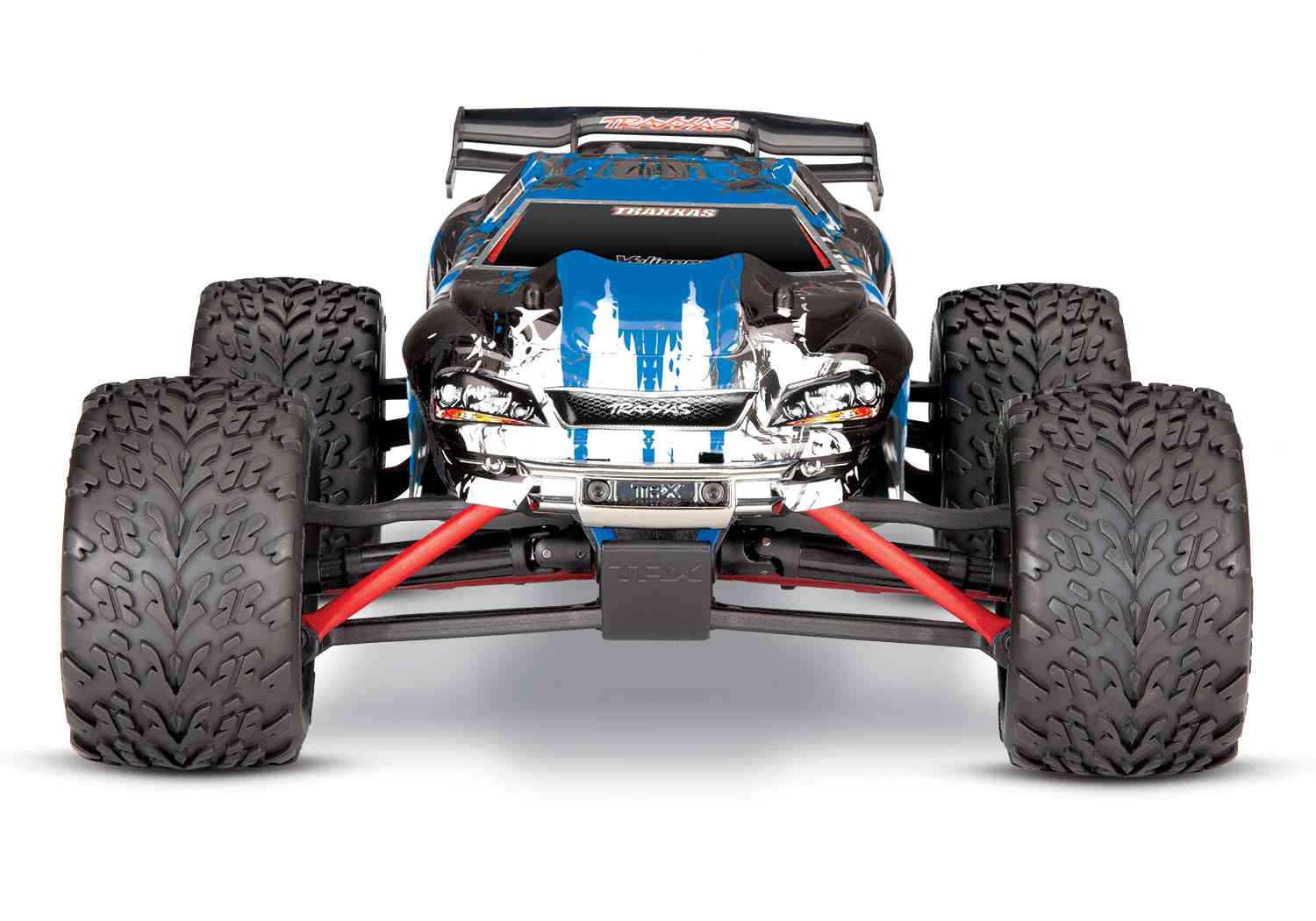

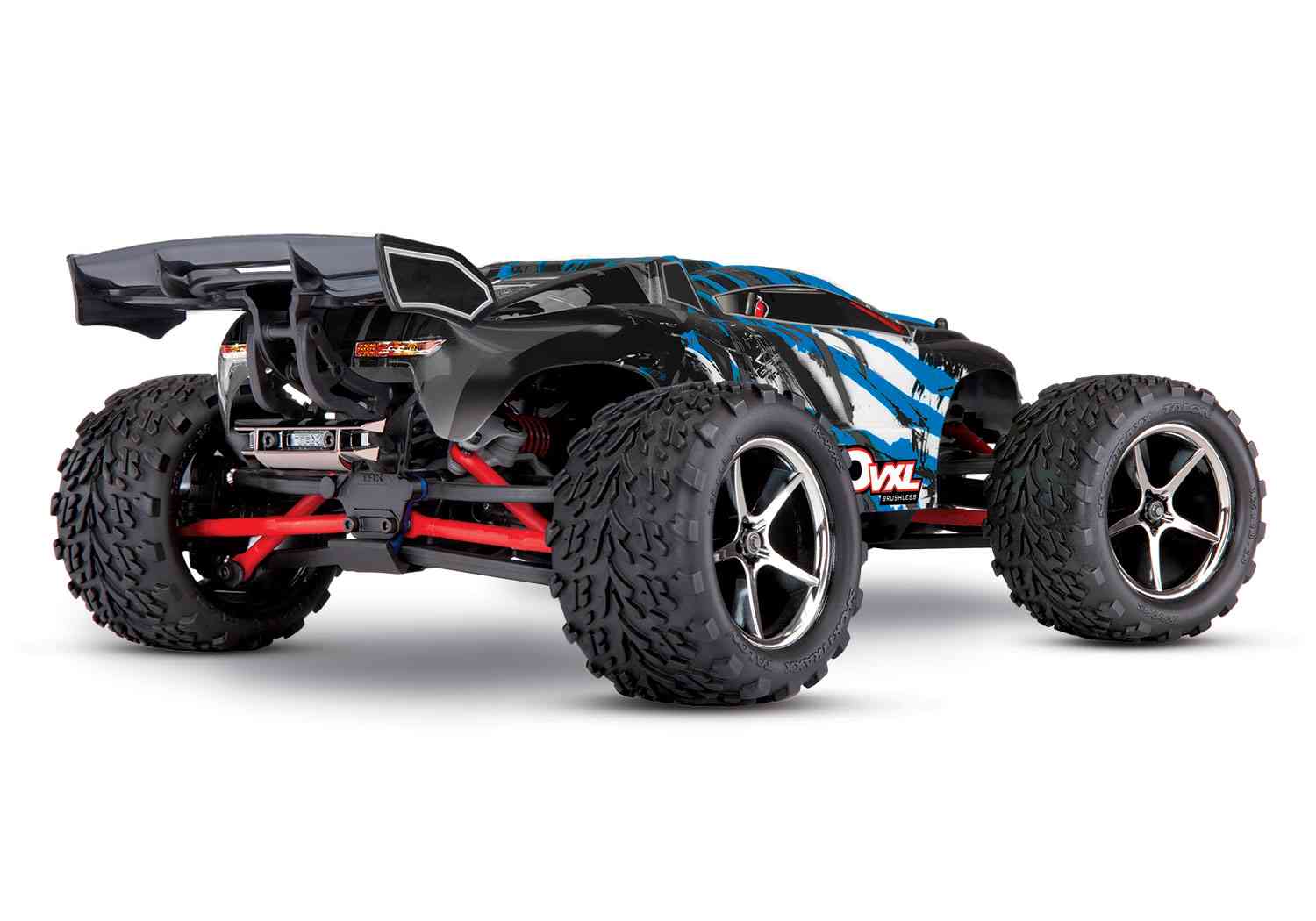

Traxxas 1/16th E-REVO BRUSHLESS VXL

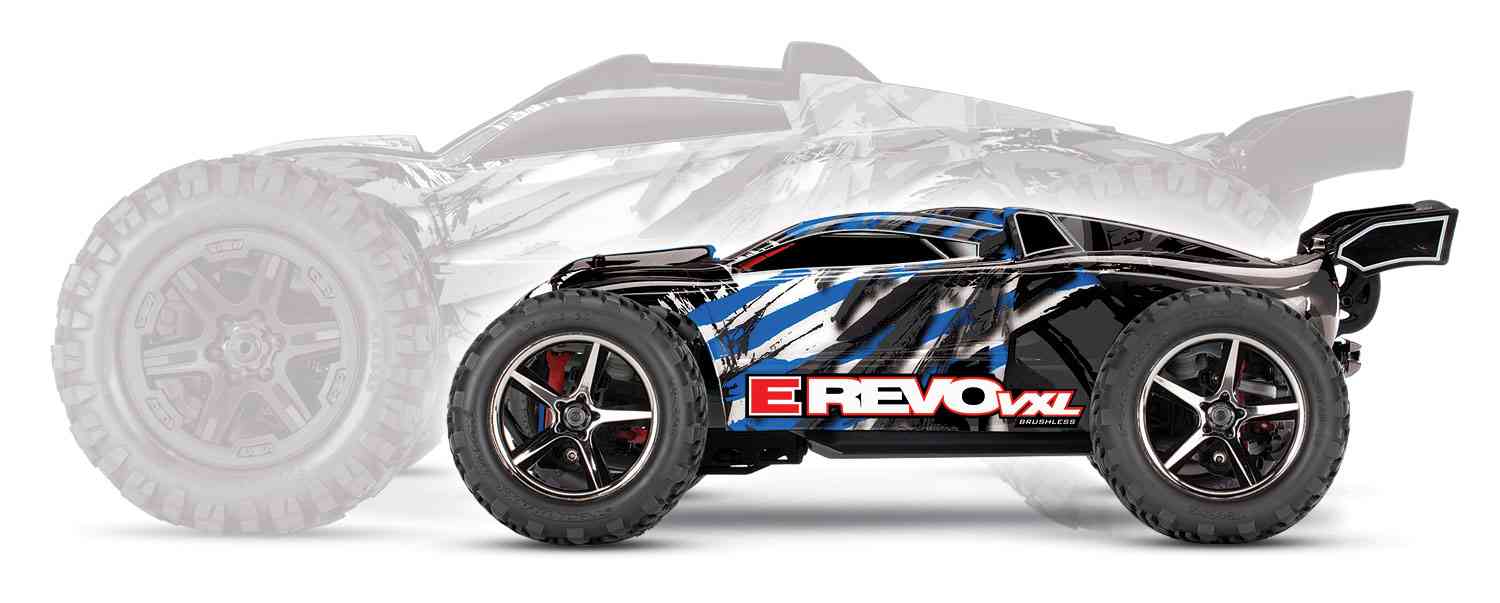

We Scaled Down Everything..Except the Power!
E-Revo Innovation, Precision,
and Performance—Now in 1/16 Scale!
Off-Road Excitement. Anytime. Anywhere

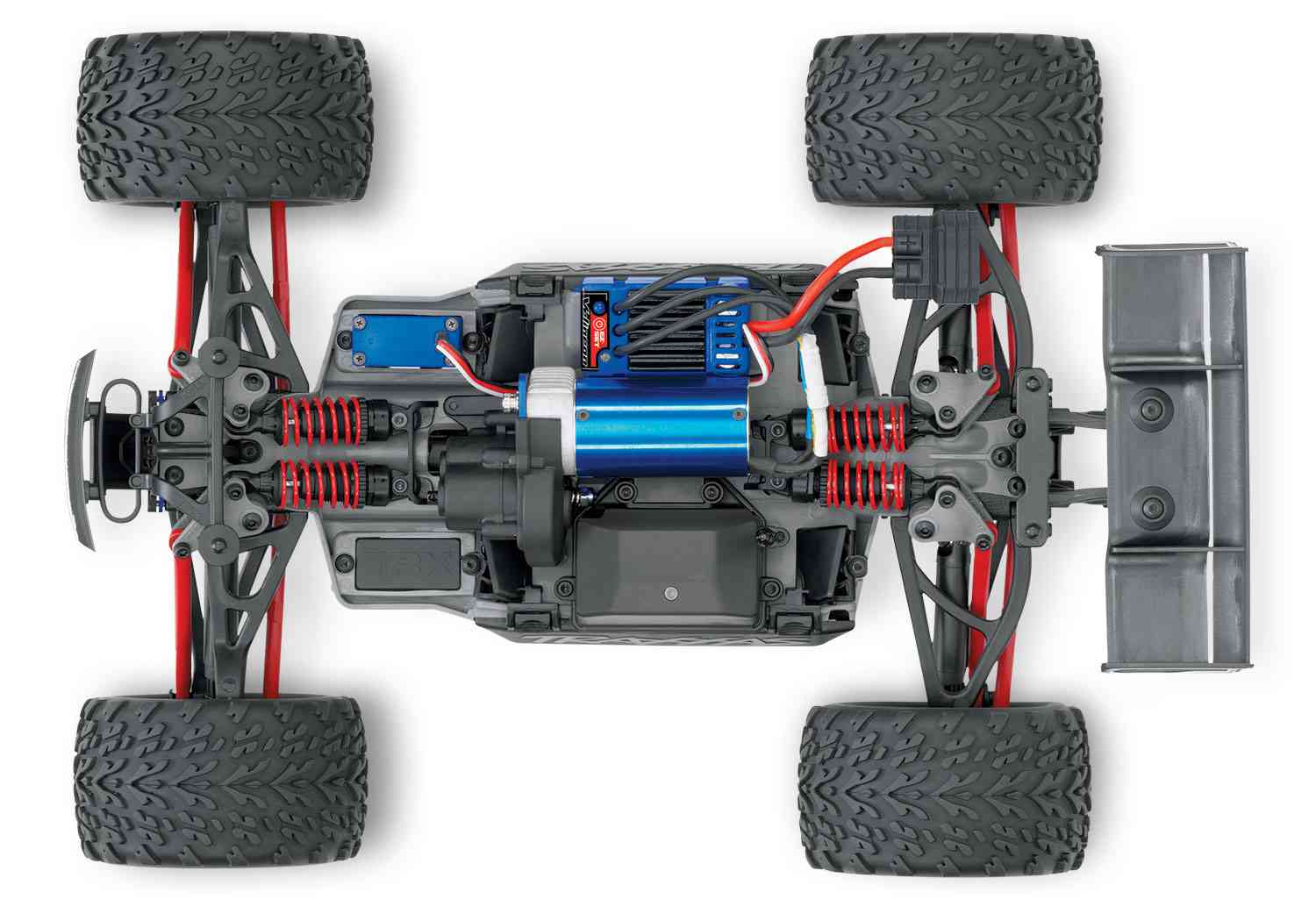

The E-Revo VXL is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The Revo's rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. Intricately molded as a single piece, the monocoque chassis balances strength and weight to far surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.
|
QUICK FEATURES ON 1/16 E-REVO VXL (#71076-3) |
|
|
|
|
Class-Leading Speed
Some mini-models are "fast for a mini." That's not good enough for Traxxas. The 1/16 E-Revo VXL is just plain fast. At 30+mph with the included 6-cell NiMH battery, E-Revo VXL is nearly twice as fast as most mini models, and faster than most electric RTR trucks of any scale. Install a second 6-cell battery to unleash the Velineon Brushless Power System's full fury, and E-Revo VXL jumps to over 50mph. No other RTR truck, regardless of scale, makes it so easy and affordable to experience this level of high speed and wheelie-popping power.
Velineon Brushless Power

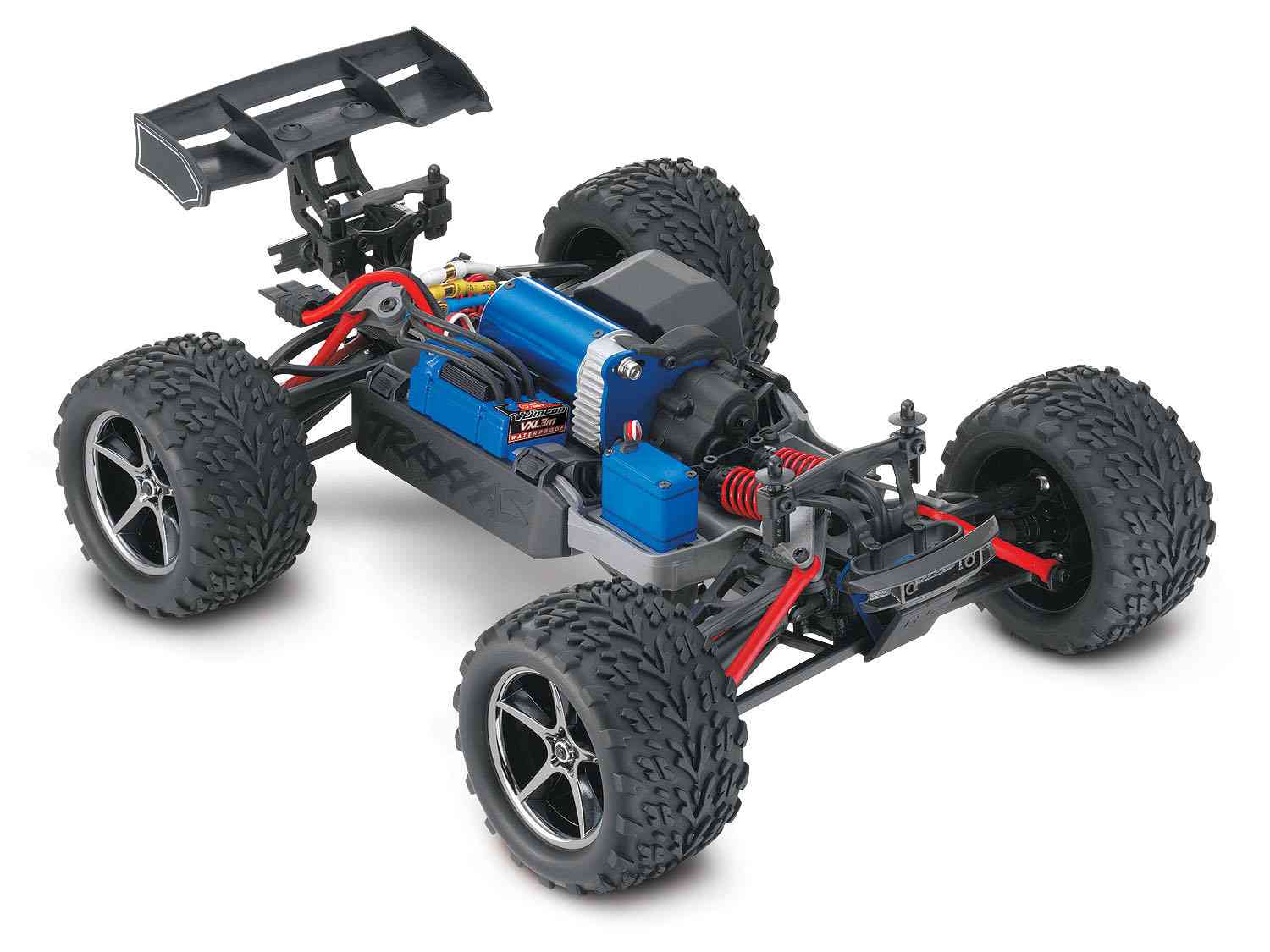

Built specifically for Traxxas 1/16 scale models, the VXL-3m speed control and Velineon® 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2S and 3S packs and rated for 6-12 NiMH cells, this potent, powerful combo gives E-Revo VXL precise throttle control and blistering top speed. The Velineon 380 is built to the same no-compromise specs as the Velineon 3500 found in Traxxas' 70+mph 1/10 scale VXL models. High-speed ball bearings. Sintered rotor. Neodymium magnets. Gold plated 3.5 mm connectors. It all adds up to 50,000 rpm of pure power and speed!
100% Ready-To-Race®
The 1/16 E-Revo VXL is fully assembled with TQi radio system, Velineon brushless power system, painted and decaled body, pre-glued tires, and quick start guide. A Traxxas Power Cell NiMH battery and charger are also included, making the E-Revo VXL truly Ready-To-Race. Traxxas backs the E-Revo VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the E-Revo to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun (and fast!).
Specification
Model information
Product Specification
VXL-3m WATERPROOF ESC SPECIFICATIONS
Input voltage | 6 to 12 cells NiMH, 2S to 3S LiPo |
Case size | 26.5 mm W x 46.5 mm D x 22 mm H |
Weight | 38 grams |
Motors | Sensorless Brushless |
Motor Limit | None |
On Resistance | 0.0005 Ohms |
BEC voltage | 6.0V DC |
Motor / Battery Wiring | 16-Gauge Maxx® Cable |
Transistor Type | MOSFET |
Low Voltage Detection | 2-Stage indicators, switchable (on or off) |
