SANWA MT-R Transmitter w/ RX-493i Receiver

◆FH5 RF mode compatible

FH5 RF mode is higher resolution than former FH4 RF mode.
Also, MT-R installed SUR (SANWA ULTRA RESPONSE) Mode which is faster mode than SSR (SANWA SUPER RESPONSE) mode which was installed in MT-S.
Combination with FH5 RF mode and SUR mode will give great smooth feeling.
Compatible receivers are RX-491, RX492, RX-492i RX-493, and RX-493i.
(FH3 and FH4 compatible receivers as RX-38*, 45*, 46*, 47*, and 48* cannot be used for MT-R)
*RX-492i and RX493i can be used with MT-R. But MT-R does not have indicator function, so
indicator function does not work with MT-R

Product Description:

UNUSUAL ABILITY IN THE CLASS

1 SETUP WIZARD FOR EASY SETTING, CAR TYPE(9 MODEL TYPES) CAN BE SET EASILY.
2 SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE
　The compatible equipment can be set by transmitter through CODE AUX functions.
＊Compatible equipment: Super Vortex Gen2 series, SSGS-02, PGS servo series
3 LIGHT BODY (363g), EASY OPERATION FOR CHILDREN

MIDDLE CLASS (ENTRY LEVEL)

System Features:

●WHITE LED BACK LIGHT
●LARGE FULL-DOT LCD MONITOR(128x64dot)
●ST TH TENSION ADJUSTMENT
●ADJUSTABLE TRIGGER
●TELEMETRY FUNCTION
●DUAL RATE
●SERVO SPEED
●SERVO REVERSE
●TRIM/SUB TRIM
●CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
●FAIL SAFE(RADIO WAVES / BATTERY)
●EPA
●OFFSET
●BIND
●BASE
●FUNCTION
●TH TYPE(70:30/50:50)
●ANTI-LOCK BRAKE
●MODEL NAME(10 LETTERS)
●MODEL MEMORY(20 MODELS)
●MODEL(SELECT/CLEAR/COPY)
●TIMER(LAP / INTERVAL / DOWN)
●LOGGER
●ALERT SETTING
●TELEMETRY SETTING
●KEY ASSIGN(SW / TRIM)
●BUZZER(SCALE / VOLUME CHANGEABLE)
●TRANSMITTER BATTERY ALARM
●LCD CONTRAST
●VOLUME ADJUSTMENT
●SETUP WIZARD
●RF MODE SETTING(FH5)
●RESPONSE MODE (NOR/SHR/SSR/SUR)
●DIRECT MODEL SELECT
●AUX1(SELECT THE OPERATION TYPE OF 3CH)
●AUX2(SELECT THE OPERATION TYPE OF 4CH)
●AUX TYPE SETTING

• CODE AUX (COMPATIBLE WITH SUPER VORTEX Gen2 and Gen2 PRO & PGS Servo
• Series & SGS-02 MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS MIXING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE RATE IS VARIABLE.
• AUX MIXING (ST MIXING, TH MIXING)
  ●4 CELL DRY BATTERY (AA x4)
  ●COMPATIBLE RECEIVER; RX-491, 492, 492i, 493, 493i

Cautions & supplemental explanation:

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA SSL SYSTEM
●When used with compatible RX-491, 492, 492i, 493, 493i, Super Vortex Gen2 series, SGS-02, and PGS servo series, the setting of ESC, Gyro, and Servos etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions is available without interruption of Intervals and the change of machine conditions.

[RESPONSE OF TELEMETRY SYSTEM]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction
　Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.

[RESPONSE MODE]
●Please do not use Analog Servo for SHR mode, SSR mode, or SUR mode.
If analog servo is used for SHR mode, SSR mode, or SUR mode, the servo will be broken and will not work.
Digital servo (PGS series, SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used only by SRG servo series and PGS servo series.
●In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work.
Please use NOR mode for the above ESC.
●SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
●SUR mode can be used only by Super Vortex Gen2, Gen2 PRO, and PGS servo series.

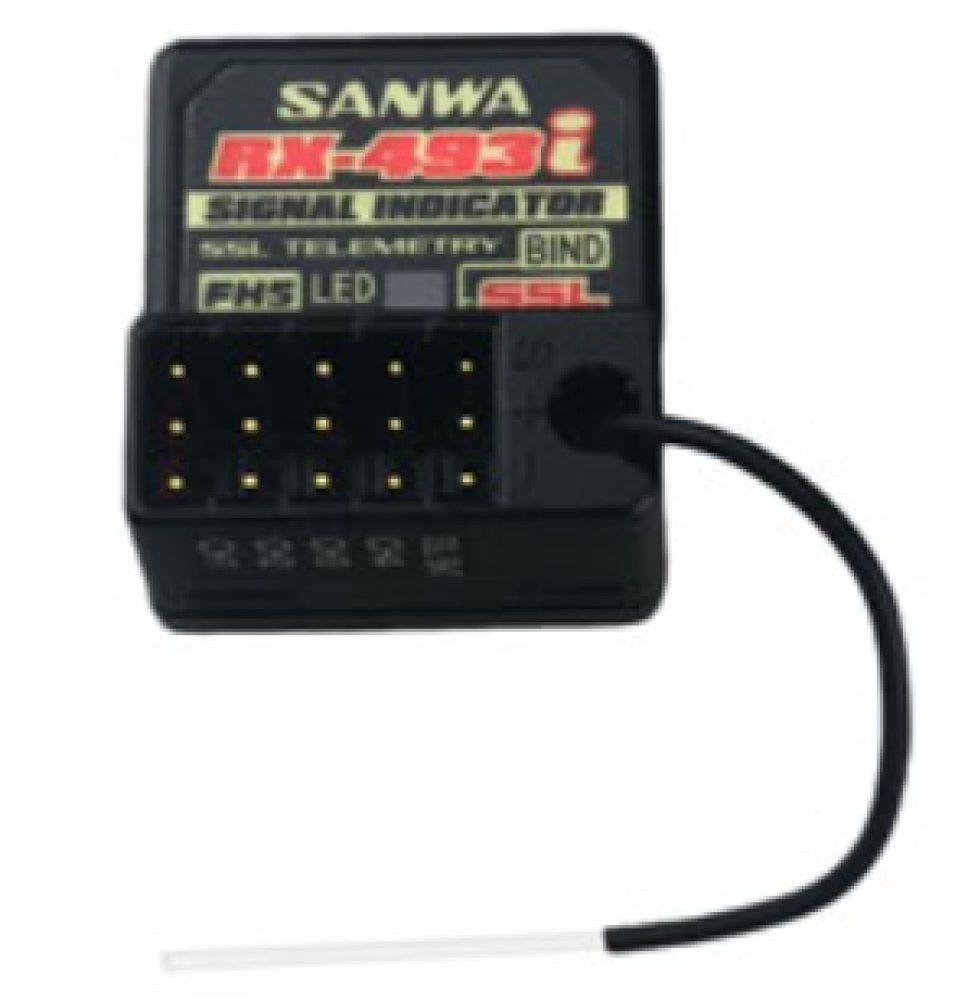

Receiver:

RX-493i
Compact receiver
Waterproof
Plug in Bind
Short Coaxial Antenna
●Indicator Function compatible
Indicator function can be checked signal strength connected transmitter.
The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter.
By SANWA technical development, indicator function can be checked signal strength without any effect with response.
●2.4 GHz FHSS5 Spread Spectrum System 4ch
●Compatible with Telemetry
※Cannot connect RPM sensor and Temperature sensor
To measure RPM and Temperature is only combine with SUPER VORTEX series
●Compatible with SSL (SUPER VORTEX Series, etc...)
●Ultra Response Mode (SUR)
●Extreme Response Mode (SXR)
●Waterproof
●The smallest and most light receiver in the class
*RX-493i can be used with FH5 transmitters do not have indicator function.
*RX-493i is not different with RX-493 except installing indicator function.
*Indicator function can be used with transmitters are compatible with indicator function.
