RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition)

• RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition)

The crowd favorite TF2 RTR is back in black with the Midnight Edition RTR. Take on the trails in style with the blacked out details and the beefy Interco Narrow TSL SS 1.55 tires mounted on the gun-metal finish of the OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels.

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.

Your adventure awaits....

Custom Designed for True-to-Scale Looks

Realistic Billet Aluminum Ladder Frame Chassis

R3 Single Speed Aluminum Transmission

Center Mounted Realistic 4x4 Transfer Case

Yota II Ultimate Scale Cast Axles

True to Scale Leaf Spring Suspension

Highly Detailed Body with Dropped Bed and More

OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain)

RC4WD Interco Narrow TSL SS 1.55 Scale Tires

Realistic Tube Bumper - Rock Rails - Skid Plate

Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios
Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch,
Features - Metal Billet Aluminum Casing, Scale Looking, Motor Mount can be Rotated to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm
Trail Finder 2 Chassis Features
Features: Billet Aluminum Constriction, Adjustable Shock Hoops
Drive Shafts
RC4WD Plastic Punisher Shaft (102mm - 117mm / 4.02" - 4.61") 5mm Hole
Wheels
Type: OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain)
Hub: 12mm Hex
Width: 21.5mm (0.85")
OD: 47.6mm (1.87")

Bumpers
Marlin Crawler Front Plastic Tube Bumper
Marlin Crawler Rear Plastic Tube Bumper
Marlin Crawler Side Plastic Sliders
Authentic crawler-style bumper, high quality flexible plastic, extremely durable and ultra scale

TF2 Truck Dimensions
Wheelbase: 287mm (11.3'')
Width: 219mm (8.6'')
Height: 219mm (8.6'')
Ground Clearance: 60mm (2.4'')
Final Drive Ratio: 31.93:1

ELECTRONICS

The TF2 RTR includes a quality XR3 3 channel 2.4Ghz radio system. Use the third channel to control a winch and add even more fun to your scale adventure!

The TF2 RTR is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going.

The TF2 RTR features the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the TF2 features the Twister High Torque Metal Gear Digital Servo to handle all your steering duties.

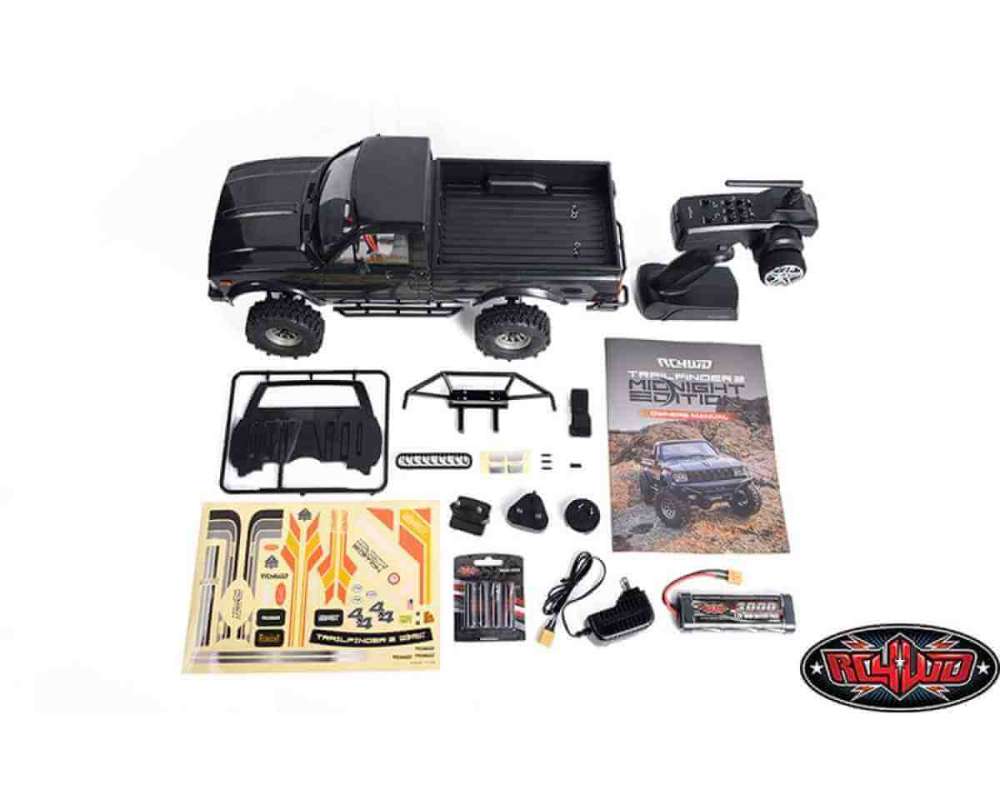

It's ALL in the box! Everything you need is provided to get you on the trails today!

SUSPENSION

The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum frame mounted under cab electronics tray for multiple electronics mounting options.

The TF2 RTR includes a set of RC4WD Ultimate Scale Shocks. Designed with scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available!

The TF2 RTR includes a set of OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain). These are a stamped steel construction with a clear coat finish.

Every TF2 RTR needs a tough set of tires, the RC4WD Interco Narrow TSL SS 1.55 Scale Tires in X2S3 Compound deliver the traction as well as perfect scale looks in just the right sizes.

DETAILS

The Mojave Body Set features a Gloss Black injection molded ABS plastic body. The body has painted details around the windows and bed to enhance the looks.

The TF2 RTR Mojave Body Set included a great dropped bed molded directly into the body. Pre-painted black, it's perfect for carrying all your scale accessories or spare wheels and tires.

The TF2 RTR Mojave body features model style square headlights, chrome bumpers and a pre-painted grill and headlight reflectors. A chrome finish bumper is also included.

The TF2 RTR Mojave Body Set includes pre-paint- ed tail lights and side marker lights. For even more realism, it's easy to add LED lighting to your truck.

The TF2 RTR also includes all scale rock sliders, plus rear tube rock guard bumpers. These great accessories protect your truck from scrapes.

DRIVETRAIN

The R3 Single Speed Transmission comes with a cast aluminum case and wider gears to allow for more use along with a Delrin Spur with Slipper Clutch.

The TF2 RTR includes the Hammer Transfer Case. Packed with detail, the Hammer features a cast metal exterior and heavy duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative round knuckles, lower mounting points and compact offset pumpkins.

The Punisher Shafts for the TF2 feature bullet- proof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.
