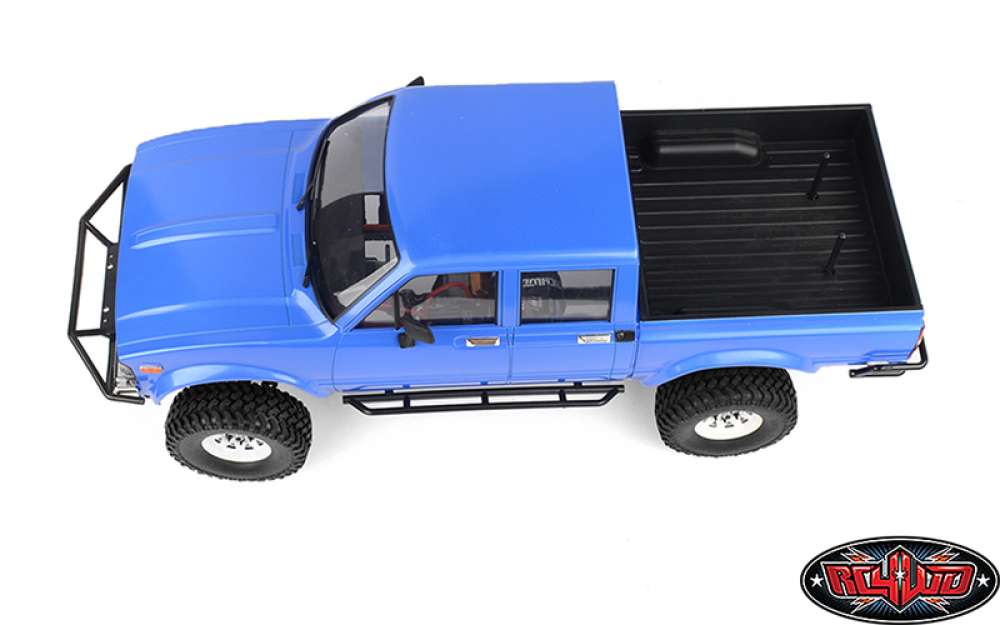

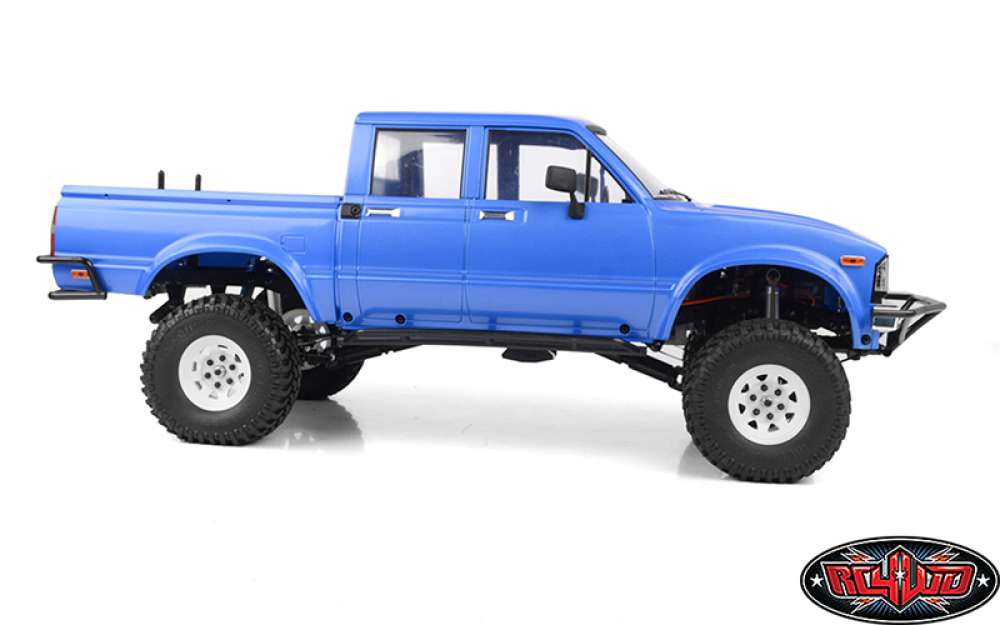

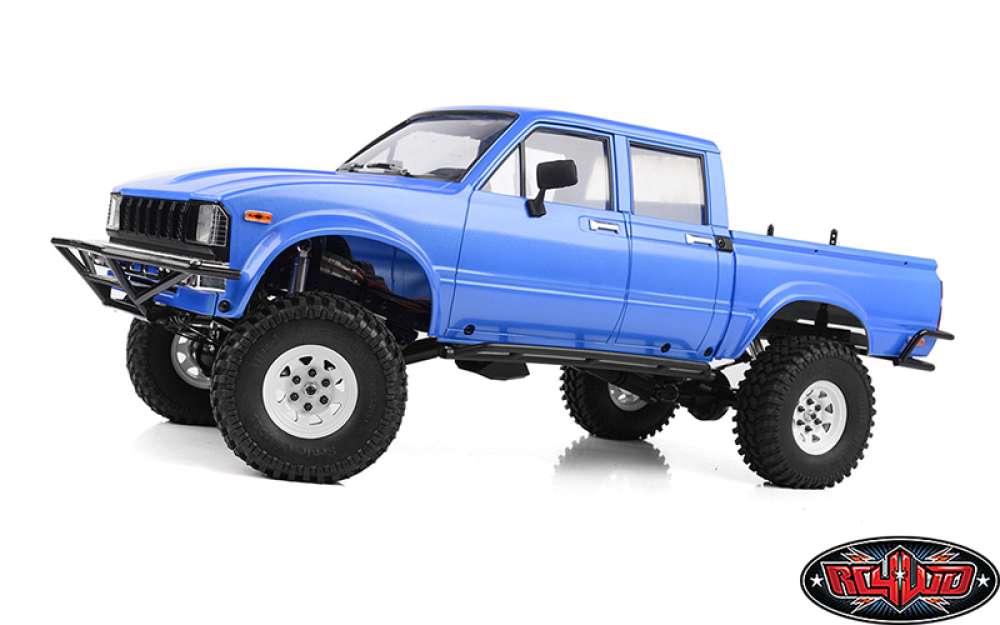

RC4WD Trail Finder 2

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 LWB RTR. Part scale truck, part adventurer, your TF2 LWB RTR is ready for your mud kicking trail-loving lifestyle!

The TF2 LWB RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 LWB RTR. Performance of the TF2 LWB RTR is smooth and with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 LWB RTR is truly a work of art in both appearance and performance.

Every TF2 LWB RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 LWB RTR.

Your adventure awaits....



Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears - Wide Steel .8 Mod, Delrin Spur, Slipper Clutch



Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1

Width at Hex (Using 4mm TF2 Hexes): 178.2mm

Trail Finder 2 Chassis

Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels
Name: 1.55" OEM Beadlock Wheels
Hub: 12mm Hex
Width: 22mm
Back Spacing: 9mm
Features: Stamped Steel, Aluminum Hub, Internal Beadlock, Very Scale Looking, 6 Lug Design

Bumpers
Marlin Crawler Front Plastic Tube Bumper
Marlin Crawler Rear Plastic Tube Bumper
Marlin Crawler Side Plastic Sliders
Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable, Very Scale



TF2 Truck Dimensions

Wheelbase: 12.36in/314mm
Width: 8.32in/211mm

Height: 8.68in/220mm

Ground Clearance: 2.44in/62mm
Final Drive Ratios: 31.93:1

DRIVETRAIN



The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The TF2 LWB RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 LWB RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 LWB RTR can stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative round knuckles, lower mounting points and compact offset pumpkins.

The Drive Shafts for the TF2 LWB RTR are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.


SUSPENSION



The TF2 LWB RTR Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under cab electronics tray for multiple mounting options for your electronics.

The TF2 LWB RTR includes a set of RC4WD Ultimate Scale Shocks. These shocks are designed for ultimate scale looks and optimum performance. They're machined from billet aluminum, are internally sprung and are completely rebuildable!

The TF2 LWB RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts for maximum strength.

The TF2 LWB RTR includes a set of RC4WD White Stamped Steel 1.55" Internal Beadlock Wheels. These wheel offer a super tough paintable white finish, aluminum internal ring and popular 6 Lug design.

Every TF2 LWB RTR needs a tough set of rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

THE DETAILS

The Mojave Body Set includes add on windshield wipers, mirrors, marker light details and door handles for the ultimate in scale looks. Realistic dashboard decals come pre-installed.

The TF2 LWB RTR Mojave Body features late model style square headlights, chrome bumpers and a redesigned shape of the classic 4x4 body style. The redesigned shape is more accurately proportioned and offers better details.

The TF2 LWB RTR Mojave Body Set includes a great dropped bed molded directly into the body. It's perfect for carrying all your scale accessories or spare wheel and tire!

The TF2 LWB RTR also includes our officially licensed Marlin Crawler injection molded Side Sliders, along with front and rear tube bumpers.

The Marlin Crawler Front Bumper has a winch mount platform built in to accept any of our RC4WD licensed Warn Winches!


ELECTRONICS



The TF2 LWB RTR includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control a winch and add even more fun to your scale adventure!

The TF2 LWB RTR is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

This new Outcry II Waterproof features great characteristics for scale trail driving, making it the perfect choice for any scale build!

A great truck needs a great servo to get you out of those tough spots and the TF2 LWB RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.

Featuring a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance you need when the turning gets tough.

Shown installed with BigDog 1/10 Triple Axle Scale Boat Trailer (Z-H0011), RC4WD Clean Stripes for Mojave II 2/4 Door Decal Sheet (Z-B0143) and Spartan Boat for example (Not Included)

What's Included:


• 1x RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set
• 1x XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
• 1x Instruction Manual

Required:


• Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
• Charger (Consult your battery guide) Chargers

Replacement Parts:


• Soft Steel Leaf Springs for Trail Finder 2 (Z-S0518)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• R3 Scale Single Speed Transmission (Z-U0028)
• TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• Fuel Cell Radio Box (Z-S0592)
• Trail Finder 2 Plastic Body Posts (Z-B0029)
• Leaf Spring Shackles & Mounts Kit (Z-S0047)
• RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
• RC4WD Marlin Crawler Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• Stamped Steel 1.55" Stock White Beadlock Wheels (Z-W0035)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Trail Finder 2 Bumper Mounts (Z-S0593)
• Mud Thrashers 1.55" Scale Tires (Z-T0100)
• The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
• The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
• Heavy Duty Nylon Strap Lock (5) (Z-S0552)
• RC4WD Marlin Crawler Side Plastic Sliders for TF2 LWB (Z-S1730)
• 540 Crawler Brushed Motor 45T (Z-E0004)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
• Trail Finder 2 "LWB" Chassis Set (Z-C0053)
• RC4WD Plastic Punisher Shaft V2 (95mm - 100mm / 3.74" - 3.94") 5mm Hole (Z-S2019)

Optional Parts:


• Steering Guard for Trifecta Front Bumper (VVV-C0400)
• RC4WD Mojave II Four Door Complete Interior w/Metal Details (Z-B0144)
• Steel Rear Bumper for RC4WD Trail Finder 2 (Style B) (VVV-C0212)
• Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round Lights) (VVV-C0211)
• Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella and IPF Round Lights) (VVV-C0209)
• Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Standard) (VVV-C0206)
• Winch (Winch Options)
• 4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
• 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
• XVD Axle for Ultimate Scale Yota 1 Axle (Z-S0342)
• Scale Aisin/Yota Style Hubs (Z-S0196)
• RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
• Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• XVD Axle for Ultimate Scale Yota II (Z-S0823)
• Red Super Soft Flex Leaf Springs (4) (Z-S0570)
• Scale Steel Punisher Shaft (100mm - 130mm / 3.94" - 5.12") 5mm (Z-S0209)
• RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
• RC4WD King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
• RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)
• RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
• RC4WD King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
• Truck Bed Mount Angled Spare Tire Carrier (Z-S0358)
• Big Boss Fender Flares for Tamiya Hilux and RC4WD Mojave Body (Z-S0590)
• Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
• RC4WD Marlin Crawler Rear Steel Tube Bumper for Trail Finder 2 (Z-S1373)
• RC4WD Warn Rock Crawler Rear Bumper for Trail Finder 2 (Z-S1561)
• Universal Front Bumper Mount for Trail Finder 2 (Z-S1264)
• RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
• Steel Tube Rear Bumper for Trail Finder 2 (VVV-C0109)
• Steel Push Bar Front Bumper for Trail Finder 2 (VVV-C0107)
• Roll Bar Rack for RC4WD Mojave 4 Door Body (TF2 LWB) (VVV-C0322)
• Tough Armor Steel Side Sliders for Trail Finder 2 LWB (Z-S1796)
• Wood Flatbed w/Mudflaps for Mojave II Four Door Body Set (VVV-C0395)
• 1/10 Rear Spare Tire Mount for Mojave Body (VVV-C0387)
• Wood Flatbed for Mojave II Four Door Body Set (VVV-C0394)
• Trifecta Front Bumper for Mojave II 2/4 Door Body Set (Black) (VVV-C0422)
• Trifecta Front Bumper for Mojave II 2/4 Door Body Set (Silver) (VVV-C0423)
• Rear Mud Flaps for Mojave II 2/4 Door Body Set (VVV-C0429)
• Mojave II Four Door Complete Metal Interior (VVV-C0452)
• RC4WD Safari Snorkel for Mojave II 2/4 Door Body Set (Z-S1826)
• OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
• OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
• OEM Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0262)
• OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
• RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
• RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
• RC4WD Bilstein SZ Series 100mm Scale Shock Absorbers (Z-D0074)
• RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
• RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
• Blade Snow Plow Mounting Kit for Trail Finder 2 / G2 (Z-S1859)
• Tough Armor Front Winch Bumper for Mojave II 2/4 Door Body Set (Z-S1845)
• Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
• RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
• JK 1.9" Scale Beadlock Wheels (Z-W0151)
• Mojave Body Lift Kit for Trail Finder 2 LWB (Z-S1869)
• RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
• Tough Armor Rear Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1827)
• Hitch Mount for RC4WD TF2 (Z-S1870)
• Tough Armor Rear Steel Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1830)
• Trail Finder 2 Aluminum Side Body Posts (Z-S1882)
• RC4WD 2001 Toyota Tacoma 4 Door Body for TF2 LWB 313MM/12.3" (Z-B0169)
• Trail Finder 2 Rear Leaf Spring Reverse Mount (Z-S0415)
• Tough Armor Comp Series Flush Mount Bumper for TF2 (Z-S1874)
• RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
• RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
• RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
• RC4WD N-Fab Roof Mounting Light Bracket for Mojave 2/4dr (Z-S0699)
• RC4WD Falken Wildpeak A/T3W 1.55'' Scale Tires (Z-T0169)
• RC4WD Baja Designs Arc Series Light Bar (124mm) (Z-E0105)
• Ultra 1.55" Beadlock Wheels (Z-W0268)
• Breaker 1.55" Beadlock Wheels (Z-W0273)
• Tough Armor Competition Stinger Bumper for Trail Finder 2 (Z-S1857)
• TRunner Classic 1.55'' Beadlock Wheels (Z-W0121)
• RC4WD Lexan Body Mounting System for TF2 LWB (Z-S1895)
• RC4WD Mojave II Front Grille (Z-B0198)
• RC4WD Mojave II Round Headlights and Marker Lights (Z-B0199)
• RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Clear) (Z-W0272)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)
• Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
• RC4WD Over/Under Drive Transfer Case (Z-U0039)
• Black Mesh 1.55" Beadlock Wheels (Z-W0103)
• Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (White) (Z-W0284)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
• Tough Armor Narrow Steel Sliders for Trail Finder 2 LWB (Z-S1916)
• Lotus 1.9" Aluminum Wheels (VVV-C0615)
• Lotus 1.9" Aluminum Wheels (Wide Rear) (VVV-C0616)
• Scale Steel Punisher Shaft (87mm - 110mm / 3.42" - 4.33") (Z-S1902)
• Stocker 1.55" Internal Beadlock Wheels (Z-W0276)
• Tango Down 1.9" Internal Beadlock Wheels (Black) (Z-W0038)
• RC4WD Mojave II Four Door Complete Body Set (Tan) (Z-B0206)
• RC4WD Mojave II Four Door Complete Body Set (Green) (Z-B0207)
• RC4WD Tough Armor Machined Rear Bumper for Toyota Tacoma (Z-S1912)
• RC4WD Yota Narrow Offset 1.9" Beadlock Wheels (Z-W0283)
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear) (Z-W0289)
• Tough Armor Tube Winch Bumper for 1985 Toyota 4Runner (Z-S1904)
• RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
• Rover Classic 1.9" Beadlock Wheels (VVV-C0695)
• Rover Vogue 1.9" Beadlock Wheels (VVV-C0696)
• RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
• RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9" Wheels (Z-W0293)
• RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
• Tango Down 1.9" Internal Beadlock Wheels (Gun Metal) (Z-W0297)
• Diamond Plate Rear Bed for RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (VVV-C0738)
• RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Silver) (Z-W0298)
• RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Black) (Z-W0299)
• Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
• RC4WD Interco Narrow TSL SS 1.55'' Scale Tires (Z-T0182)
• RC4WD Level 8 Bully Pro 6 1.9" Beadlock Wheels (Z-W0300)
• RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
• RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0309)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0310)
• Six-Spoke 1.55" Internal Beadlock Wheels (Black) (VVV-C0806)
• Six-Spoke 1.55" Single Internal Beadlock Wheel (Black) (VVV-C0807)
• Six-Spoke 1.55" Internal Beadlock Wheels (Gold) (VVV-C0808)
• Six-Spoke 1.55" Single Internal Beadlock Wheel (Gold) (VVV-C0809)
• Dome Spoked 1.9" Classic Beadlock Wheels (VVV-C0810)
• Vehement 1.9" Internal Beadlock Wheels (VVV-C0811)
• RC4WD ARB Intensity LED Light Set (Z-E0112)
• RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
• RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
• RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
• RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
• RC4WD Cali Off-Road Distorted 1.9" Beadlock Wheels (Z-W0295)
• OEM XJ 1.9" Beadlock Wheels (Chrome) (VVV-C0849)
• OEM XJ 1.9" Beadlock Wheels (Gunmetal) (VVV-C0850)
• RC4WD Ridler 645 1.9" Internal Beadlock Wheels (Z-W0305)
• RC4WD Walker Evans 501 Legend 1.7" Beadlock Wheels (Z-W0320)
• RC4WD Walker Evans 501 Legend 1.55" Beadlock Wheels (Z-W0319)
• RC4WD Walker Evans 501 Legend 1.9" Beadlock Wheels (Z-W0318)
• RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels (Z-W0304)
• Rally 1.9" Beadlock Wheels (Gold) (Z-W0324)
• Rock Tamer 1.9" Beadlock Wheels (Z-W0321)
• RC4WD Enforcer 1.9" Beadlock Wheels (Red) (Z-W0323)
• RC4WD Rogue 1.9" Beadlock Wheels (Z-W0314)
• RC4WD Rogue 1.7" Beadlock Wheels (Z-W0315)
• RC4WD Rogue 1.55" Beadlock Wheels (Z-W0317)
• Compass M/T 1.55" Scale Tires (Z-T0186)
• RC4WD Walker Evans 501 Legend 2.2" Beadlock Wheels (Z-W0322)
• Stamped Steel 1.7" 10-Oval Hole Wheels (White) (Z-W0311)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
• RC4WD Rogue 2.2 Beadlock Wheels (Z-W0316)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
• Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
• 1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
• Rocky Country 1.55" Truck Tires (Z-T0022)
• Mud Hogs 1.55" Scale Tires (Z-T0029)
• RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
• RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
• RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
• RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
• RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
• RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
• RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
• RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
• RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
• TNK 2.2" Beadlock Wheels (4x) (VVV-C0986)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (4x) (VVV-C0987)
• TNK 2.2" Beadlock Wheels (2x) (VVV-C0988)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (2x) (VVV-C0989)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1013)
• Seren 2.2" Single Wheel (Silver) (VVV-C1014)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1015)
• Seren 2.2" Single Wheel (Black) (VVV-C1016)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1017)
• Burato 2.2" Single Wheel (Silver) (VVV-C1018)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1019)
• RC4WD Teraflex Revolver Shackle (Z-S1594)
• K44 Ultimate Scale Cast Front Axle (Left Pumpkin) (Z-A0140)
• Sand Thrasher 1.9" Rear Scale Tires (Z-T0076)
• Sand Thrasher 1.9" Front Scale Tires (Z-T0077)
• Helical Gear Set for 1/10 Yota Axle (Z-G0059)
• Anti Wrap Bar for Yota 2 Axles (Z-S0782)
• Scale Steel Punisher Shaft V2 (100mm - 130mm / 3.94'' - 5.12'') (Z-S1087)
• Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
• RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
• RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
• 1/10 Bed Mounted Tire Carrier (Z-S0759)
• Scale Steel Punisher Shaft V2 (55mm - 60mm / 2.17'' - 2.36'') (Z-S0351)


Upgrades:


• Leaf Spring Mount for TF2 LWB Chassis and Toyota LC70 Body (VVV-C0360)
• Bed Soft Top w/Cage for RC4WD Mojave II Four Door (Green) (VVV-C0391)
• Bed Soft Top w/Cage for RC4WD Mojave II Four Door (White) (VVV-C0393)
• Bed Soft Top w/Cage for RC4WD Mojave II Four Door (Black) (VVV-C0392)

Items of Interest: (Not required for completion)


• Paint for Body
• Paint for Body Lenses (V-TAM81526, V-TAM81527)

Instruction Manual:


• Trail Finder 2 Truck Kit "LWB" (Click here)

Press Information:


• Click here to download.

Notes:


• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
