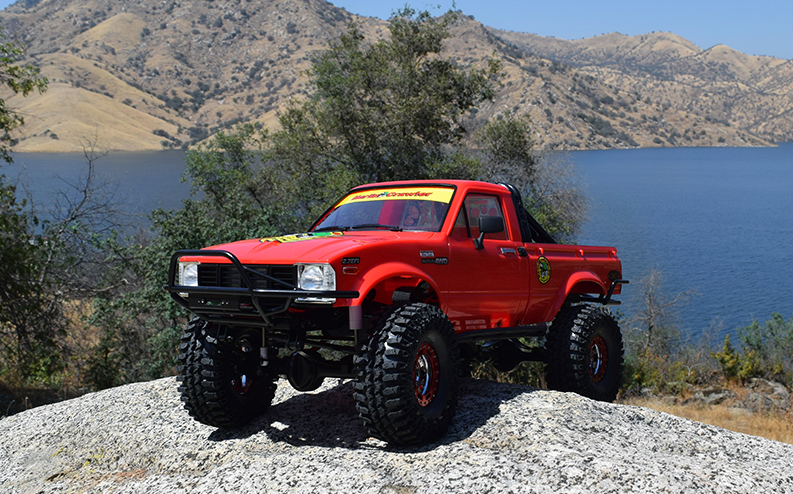

RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set

RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth and with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.

Your adventure awaits....

Yota II Ultimate Scale Cast Axles

Custom Designed for True to Scale Looks

Twister High Torque Metal Gear Digital Servo

Chassis Mounted Steering Servo

540 Crawler Brushed Motor 45T

Super Soft Flex Leaf Springs For TF2

Interco IROK 1.7'' Scale Tires

R3 Single Speed Transmission

Realistic Aluminum Ladder Frame Chassis

Center Mounted Realistic 4x4 Transfer Case

Outcry III Waterproof ESC

Plastic Fuel Cell Receiver Box

Superlift Superide 80MM Shock Absorbers

TRO 1.7" Stamped Steel Beadlock Wheels

6-Cell 3000MAH NiMH Battery Pack

NiMH Peak Battery Charger

Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67: 1
Width at Hex: 180.5mm

TF2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels
Name: TRO 1.7" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 25mm
OD: 50mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Very Scale Looking, 6 Lug Design

Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 221mm (8.7")
Height: 230mm (9")
Ground Clearance: 72mm (2.83")
Final Drive Ratio: 31.9:1
Weight: 6.45Lbs/2.93Kg

DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The TF2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.



The Driveshafts for the TF2 RTR aredesigned with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and durability on the trails.

SUSPENSION
The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box. There is also an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options!

The TF2 RTR includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts for maximum strength. Optional 4-link conversion is available on our store site.

The TF2 RTR includes a set of TRO 1.7" Stamped Steel Beadlock Wheels in a beautiful red anodized finish with chrome details. These steel stamped wheels with CNC machined parts offer amazing details in the popular 6 lug design.

Every TF2 RTR needs a tough set of tires and the included Interco IROK 1.7" ScaleTires provide just that! These tires are known for handling rocks, mud snow and whatever else you can throw at it with its durable advanced X2SS soft & sticky compound.

DETAILS

The TF2 Marlin Crawler Body Set includes pre-painted wipers, mirror, light details and door handles for ultimate in scale looks. Realistic dashboard decals come pre-installed.

The unmistakable lines of a classic. The TF2 Marlin Crawler Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The TF2 Marlin Crawler Body Set includes a great dropped bed molded directly into the body. Pre-painted black, it's perfect for carrying all your scale accessories or spare wheel and tire.

The TF2 Marlin Crawler Body Set includes a roll bar with signature MC details to protect the cab from any unplanned tumbles so you're always covered.

The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.



ELECTRONICS

The TF2 RTR includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control a winch and add even more fun to your scale adventure!

The TF2 RTR is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

The popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake is included for reliable, constant power on demand at any time.

A great truck needs a great servo to get you out of those tough spots and the TF2 RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.

It's ALL in the box. Everything you need is provided to get you on the trails today!

Marlin featured with his crawler truck, world famous for being most wheeled Toyota pickup!

What's Included:

• 1x RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set

Replacements Parts:


• Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
• R3 Single Speed Transmission Mounts (Z-S0802)
• Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
• TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• Drag Link for Yota II (101mm / 3.98in) (Z-S1836)
• R3 Scale Single Speed Transmission (Z-U0028)
• Super Soft Flex Leaf Springs for TF2 (Z-S1815)
• Fuel Cell Radio Box (Z-S0592)
• Trail Finder 2 Plastic Body Posts (Z-B0029)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• XVD Axle for Ultimate Scale Yota II G2 TF2/TF3 Axle (Z-S0823)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• RC4WD Marlin Crawler Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
• M3 Mini Plastic Rod End (Z-S0398)
• M3 Offset Short Plastic Rod End (Z-S0401)
• RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
• Leaf Spring Shackles & Mounts Kit (Z-S0047)
• RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
• Trail Finder 2 Bumper Mounts (Z-S0593)
• RC4WD Interco IROK 1.7" Scale Tires (Z-T0068)
• RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 (Z-S1789)
• RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole (Z-S2020)
• Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
• Heavy Duty Nylon Strap Lock (Z-S0552)
• 540 Crawler Brushed Motor 45T (Z-E0004)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
• TRO 1.7" Stamped Steel Beadlock Wheels (Red/Chrome) (Z-W0225)
• RC4WD Mojave II Front Grille (Z-B0198)
• RC4WD Mojave II Round Headlights and Marker Lights (Z-B0199)

Replacement Hardware:


• Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
• Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
• Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
• Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
• Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
• Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
• Steel Flat Head Socket Cap Screw M3 x 6mm (10) (Z-S0648)
• Steel Flat Head Cap Screw M3 x 8mm (10) (Z-S0649)
• M3 Driveshaft Screw Pin (5) (Z-S0804)
• Leaf Spring Shoulder Screws (Black) (Z-S0275)
• 2mm Black Spacer with M3 Hole (10) (Z-S0600)
• 3mm Black Spacer with M3 Hole (10) (Z-S0806)

Optional Parts:


• Trail Finder 2 V8 Engine Mounts (Z-S1239)
• RC4WD Skid Plate for Trail Finder 2 V8/R4 (Z-S1488)
• Scale Bench Seat for Mojave Body (Z-B0032)
• XVD Axle for Ultimate Scale Yota 1 Axle (Z-S0342)
• Scale Aisin/Yota Style Hubs (Z-S0196)
• RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
• Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
• Scale Steel Punisher Shaft (100mm - 130mm / 3.94" - 5.12") 5mm (Z-S0209)
• LED Basic Lighting System For Mojave II 2/4 Door Body (Z-E0016)
• Mojave Body Lift Kit for Trail Finder 2 (Z-S0682)
• RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
• RC4WD 80mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0036)
• The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
• RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
• RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0038)
• RC4WD Mickey Thompson 1.55" Baja MTZ P3 Scale Tires (Z-T0058)
• RC4WD Mickey Thompson 1.55" Baja Claw TTC Scale Tires (Z-T0064)
• RC4WD Interco IROK 1.55" Scale Tires (Z-T0056)
• Steel Flat Head Cap Screw M2 X 4mm (10) (Z-S1516)
• RC4WD 1/10 Mini Warn 9.5cti Winch (Z-S1571)
• RC4WD 1/10 Warn 8274 Winch (Z-E0075)
• RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119)
• RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
• XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
• T-Runner Classic 1.9'' Beadlock Wheels (Z-W0250)
• Roll Bar/Roof Rack w/Light Bar Frame for TF2 Mojave Body (VVV-C0295)
• Steering Guard for Trifecta Front Bumper (VVV-C0400)
• Malice Mini Roof Rack for Mojave II Body Set (VVV-C0424)
• Malice Mini Roof Rack w/Lights for Mojave II Body Set (VVV-C0425)
• Metal Rear Emblem for TF2 Mojave Body (White) (VVV-C0290)
• Metal Vintage Rear Emblem for TF2 Mojave Body (White) (VVV-C0291)
• Metal Rear Emblem for TF2 Mojave Body (Black) (VVV-C0292)
• Metal Vintage Rear Emblem for TF2 Mojave Body (Black) (VVV-C0293)
• Steel Rear Bumper for RC4WD Trail Finder 2 (Style B) (VVV-C0212)
• Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round Lights) (VVV-C0211)
• Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Standard) (VVV-C0206)
• Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella and IPF Round Lights) (VVV-C0209)
• RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
• RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
• RC4WD 1/10 Warn Hawse Fairlead (Black) (Z-S1315)
• RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 (Z-S1789)
• RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
• Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
• RC4WD Marlin Crawler Roll Bar for Mojave Body (Z-S1478)
• RC4WD Falken Wildpeak A/T3W 1.55′′ Scale Tires (Z-T0169)
• RC4WD Mojave II Rear Bobbed Bed (Z-B0202)
• RC4WD Mojave II Round Headlights and Marker Lights (Z-B0199)
• RC4WD Mojave II Two Door Complete Interior w/Metal Details (Z-B0173)
• Tough Armor Competition Stinger Bumper for Trail Finder 2 (Z-S1857)
• RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)
• Scale Steel Punisher Shaft (87mm - 110mm / 3.42" - 4.33") (Z-S1902)
• RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear) (Z-W0289)
• Tough Armor Tube Winch Bumper for 1985 Toyota 4Runner (Z-S1904)
• RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
• RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
• RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
• RC4WD Interco Narrow TSL SS 1.55" Scale Tires (Z-T0182)
• Compass M/T 1.55" Scale Tires (Z-T0186)
• RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
• RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
• RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
• RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
• Rocky Country 1.55" Truck Tires (Z-T0022)
• Mud Hogs 1.55" Scale Tires (Z-T0029)
• RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
• RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
• RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
• RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
• Stamped Steel 1.7" 10-Oval Hole Wheels (White) (Z-W0311)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
• RC4WD Rogue 2.2 Beadlock Wheels (Z-W0316)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
• Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
• 1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
• RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
• TNK 2.2" Beadlock Wheels (4x) (VVV-C0986)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (4x) (VVV-C0987)
• TNK 2.2" Beadlock Wheels (2x) (VVV-C0988)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (2x) (VVV-C0989)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1013)
• Seren 2.2" Single Wheel (Silver) (VVV-C1014)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1015)
• Seren 2.2" Single Wheel (Black) (VVV-C1016)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1017)
• Burato 2.2" Single Wheel (Silver) (VVV-C1018)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1019)
• Tough Armor High Clearance Winch Bumper (Z-S2050)
• Slot Mag 1.9" Wheels (Z-W0331)
• Slot Mag 1.55" Wheels (Z-W0332)
• RC4WD Fuel Off-Road Cleaver 1.9" Dually Wheels (Front and Rear) (Z-W0330)
• Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
• OEM JK Internal Beadlock 1.9" Wheels (Z-W0336)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black and Chrome) (Z-W0337)
• K44 Ultimate Scale Cast Front Axle (Left Pumpkin) (Z-A0140)
• RC4WD Fuel Off-Road 1.55” Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
• Heritage Edition Stamped Steel 1.9 Wheels (Black) (Z-W0340)
• RC4WD Patriot Deepdish 1.9 Internal Beadlock Wheels (Z-W0343)
• Apio 1.55" Beadlock Wheels (White) (VVV-C1163)
• Apio 1.55" Single Beadlock Wheel (White) (VVV-C1164)
• Apio 1.55" Beadlock Wheels (Black) (VVV-C1165)
• Apio 1.55" SIngle Beadlock Wheel (Black) (VVV-C1166)
• Landies Vintage Stamped Steel 1.55" Beadlock Wheels (Rust) (Z-W0043)
• Heritage Edition Stamped Steel 1.9 Wheels (Grasmere Green) (Z-W0342)
• Rad 1.9" Aluminum Internal Beadlock Wheels (Black) (VVV-C1225)
• Rad 1.9" Aluminum Internal Beadlock Wheels (Silver) (VVV-C1227)
• Rad 1.9" Aluminum Internal Beadlock Single Wheel (Black) (VVV-C1226)
• Rad 1.9" Aluminum Internal Beadlock Single Wheel (Silver) (VVV-C1228)
• Helical Gear Set for 1/10 Yota Axle (Z-G0059)
• RC4WD KC HiLiTES Daylighter Light Set V2 (Z-E0022)
• RC4WD KC HiLiTES KC Light Set V2 (Z-E0036)
• Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065)
• Stamped Steel 1.7" Beadlock SR5 Wheels (White/Black) (Z-W0066)
• Anti Wrap Bar for Yota 2 Axles (Z-S0782)
• Scale Steel Punisher Shaft V2 (100mm - 130mm / 3.94'' - 5.12'') (Z-S1087)
• Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
• RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
• RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
• 1/10 Bed Mounted Tire Carrier (Z-S0759)
• RC4WD Center Line 1.9" Warrior Deep Dish Wheels (Z-W0010)
• Scale Steel Punisher Shaft V2 (55mm - 60mm / 2.17'' - 2.36'') (Z-S0351)


Instruction Manual:

• Click here to download

Press Information:

• Click here to download

Items of Interest: (not required for completion)

• Grease and Lubrication (Z-S1199)(Z-S1197)
• Double Sided Tape for ESC


Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Do not over tighten screws, otherwise you may strip the thread.

Related:

• Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)

Marlin Crawler and the Turtle Logos are registered trademarks of Marlin Crawler Inc. The Marlin Crawler logos are property of Marlin Crawler Inc. and used under license to RC4WD.
