RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition)

RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition)

This is new Licensed RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition). These have been Officially Licensed by Land Rover and are only available from RC4WD and our Dealers.

Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!

Are you ready for your off-road experience?

Yota II Ultimate Scale Cast Axles
Custom Designed for True to Scale Looks


Twister High Torque Metal Gear Digital Servo

Chassis Mounted Steering servo

540 Crawler Brushed Motor 45T

3 Link Front and 4 Link Rear Suspension

Super Grip Dirt Grabber Tires

R3 Single Speed Transmission

Realistic Aluminum Ladder Frame Chassis

Center Mounted Realistic 4x4 Transfer Case

Outcry III Waterproof ESC

Plastic Fuel Cell Receiver Box

Dual Spring Oil Filled Shock Absorbers

1.9" Stamped Steel Beadlocks W/Lug Nuts

6-Cell 3000MAH NiMH Battery Pack

NiMH Peak Battery Charger

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide 0.8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles

Ratio: 15/40 = 2.67:1

Width at Hex: 178.2mm

G2 Suspension

Double Triangulated 4 Link Rear Suspension

3 Link Suspension with Panhard Bar

Shock Absorbers

Dual Spring 80mm Shocks: Can be Oil Filled

Wheels

Type: 1.9'' 5 Lug Wagon Wheels

Hub: Pin Type

Width: 25mm

Back Spacing: 11mm

Bumpers

Machined Billet Aluminum, Lightweight

G2 Truck Dimensions

Wheelbase: 275mm (10.8")

Length: 426mm (16.7")

Height: 252mm (9.9")

Ground Clearance: 58mm (2.28")

Final Drive Ratio: 31.9:1

Weight: 6.83Lbs / 3.1Kg

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9'' internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set of rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.


DETAILS

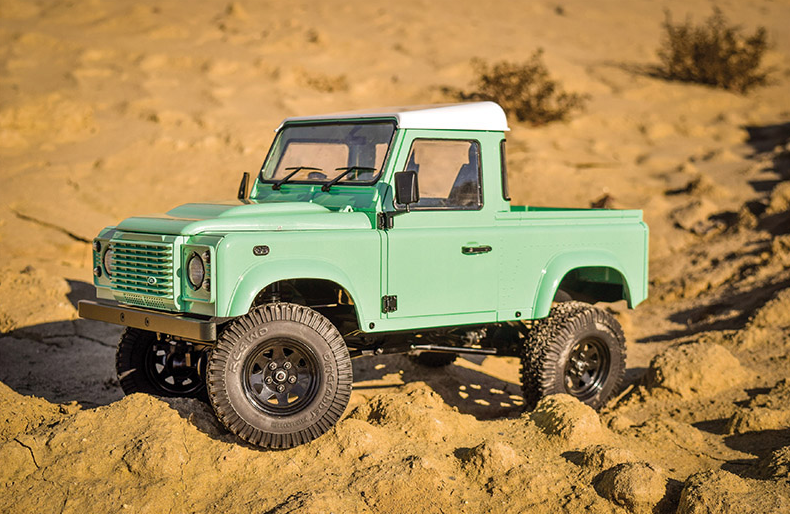

The G2 features the 2015 Land Rover Defender D90 Body Set, which comes with an awesome assortment of scale details including mirrors, door handles, vents and grille to match the 1:1 vehicle.

It’s officially licensed with Land Rover with opening side and rear tailgate and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.


The 2015 Land Rover Defender D90 Body Set features a Grasmere Green paint job with exact details to replicate the Heritage Edition launched in 2015 to commemorate the last production year of the classic.

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It's all here to bring your scale experience to a new level.

The body features many intricate details and is almost unmistakable from its full size counterpart.


ELECTRONICS

The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

The RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set features the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.


It's All in the box! Everything you need is provided to get you on the trails today!

Photo provided by Anthony Schmidt (@anthony_ryan_schmidt)

Photo provided by Anthony Schmidt (@anthony_ryan_schmidt)

What's Included:


• 1x RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition)

Replacements Parts:


• Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• Yota Front Steel Axle Shaft (Z-S0060)
• Yota Steel Straight Axle Shaft (Rear) (Z-S0061)
• Gelande 2 Chassis Set (Z-C0040)
• Battery Plate for Gelande 2 (Z-S0792)
• Servo Mounts for Gelande 2 Chassis (Z-S0791)
• Fuel Cell Radio Box (Z-S0592)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
• R3 Scale Single Speed Transmission (Z-U0028)
• RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
• Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
• Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
• Gelande 2 Front Replacement Bumper (Z-S0800)
• Gelande 2 Rear Replacement Bumper (Z-S0801)
• R3 Single Speed Transmission Mounts (Z-S0802)
• Metal Drive Coupling for Gelande 2 (Z-S0803)
• 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
• 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
• 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
• 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
• Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
• Heavy Duty Nylon Strap Lock (5) (Z-S0552)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• 1mm Black Spacer with M3 Hole (10) (Z-S0809)
• 2mm Black Spacer with M3 Hole (10) (Z-S0600)
• 3mm Black Spacer with M3 Hole (10) (Z-S0806)
• 5mm Black Spacer with M3 Hole (10) (Z-S0821)
• 540 Crawler Brushed Motor 45T (Z-E0004)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Outcry III Waterproof ESC (Z-E0113)
• RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
• RC4WD Plastic Punisher Shaft V2 (95mm - 100mm / 3.74" - 3.94") 5mm Hole (Z-S2019)


Replacement Hardware:


• Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
• Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
• Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
• Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
• Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
• Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
• Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
• Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
• Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
• Gelande II Electronics Deck (Z-S0793)
• Nylock Nuts M3 (Black) (Z-S0629)
• M3 x 15mm Set Screw (10) (Z-S0650)
• M3 X 10mm Set Screw (10) (Z-S0308)
• M3 Driveshaft Screw Pin (5) (Z-S0804)
• Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
• Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
• Button Head Self Tapping Screws M2.5 x 8mm (Black) (Z-S1572)
• M4 Flanged Lock Nut (Black) (Z-S0620)

Upgraded Front / Rear Shock:


• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)

Optional Parts:


• RC4WD Snorkel for Gelande II D90/D110 (Z-S0247)
• Inner Fender Set for Gelande II D90/D110 Body (Z-S1194)
• Basic Lighting System for 2015 Land Rover Defender D90 Body Set (Pick-Up/SUV) (Z-E0122)
• Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
• Big Boss Fender Flare Set for D90/D110 (Z-S1741)
• 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
• 1.9" Landies Internal Beadlock Wheels (Z-W0075)
• RC4WD Drive Flange Wheel Nut Cover (Z-S0756)
• RC4WD Mickey Thompson Metal Series 1/10 Wheel Center Caps (2) (Z-S0850)
• Gelande 2 Steering Guard (Z-S0824)
• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
• Superlift Adjustable Steering Stabilizer (90mm-120mm) (Z-S0986)
• Scale Rear Hubs V2 (Z-S1266)
• 1/10-1/14 D90 Small Yellow Light (Detailed) (VVV-C0099)
• Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
• Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
• Scale Steel Punisher Shaft (77mm - 100mm / 3.03" - 3.94") (Z-S1054)
• Grid Design Steering Guard for Gelande II (D90/D110) (VVV-C0239)
• Metal Exhaust for Gelande II D90 (VVV-C0287)
• Gelande II Leaf Spring Kit (Z-S1752)
• OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
• OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
• OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0262)
• OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
• RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
• RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
• RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
• Ultra Punisher Shafts (83.7MM - 105MM / 3.29" - 4.13") 5MM Hole (Z-S0573)
• RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
• RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
• JK 1.9" Scale Beadlock Wheels (Z-W0151)
• RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
• 1/10-1/14 Work Light (VVV-C0475)
• 1/10-1/14 Work Light (w/LED) (VVV-C0476)
• 1/10-1/14 Work Lights (w/LED) (VVV-C0477)
• RC4WD KC HiLiTES KC Light Set (Z-S1855)
• RC4WD KC HiLiTES Daylighter Light Set (Z-S1856)
• RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
• RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
• RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
• RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
• Ultra 1.55" Beadlock Wheels (Z-W0268)
• Breaker 1.55" Beadlock Wheels (Z-W0273)
• TRunner Classic 1.55'' Beadlock Wheels (Z-W0121)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Clear) (Z-W0272)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)
• Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
• RC4WD Over/Under Drive Transfer Case (Z-U0039)
• Black Mesh 1.55" Beadlock Wheels (Z-W0103)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (White) (Z-W0284)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
• Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
• Super Soft Flex Leaf Springs for Gelande II (4) (Z-S1897)
• Scale Steel Punisher Shaft (87mm - 110mm / 3.42" - 4.33") (Z-S1902)
• Stocker 1.55" Internal Beadlock Wheels (Z-W0276)
• Tango Down 1.9" Internal Beadlock Wheels (Black) (Z-W0038)
• RC4WD Yota Narrow Offset 1.9" Beadlock Wheels (Z-W0283)
• RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear) (Z-W0289)
• RC4WD Goodyear Wrangler Duratrac 1.55'' 4.19'' Scale Tires (Z-T0177)
• RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
• RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
• Rover Classic 1.9" Beadlock Wheels (VVV-C0695)
• Rover Vogue 1.9" Beadlock Wheels (VVV-C0696)
• RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
• RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9" Wheels (Z-W0293)
• RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
• Tango Down 1.9" Internal Beadlock Wheels (Gun Metal) (Z-W0297)
• Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707)
• Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708)
• RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Silver) (Z-W0298)
• RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
• RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
• RC4WD Level 8 Bully Pro 6 1.9" Beadlock Wheels (Z-W0300)
• RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
• RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0309)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0310)
• Six-Spoke 1.55" Internal Beadlock Wheels (Black) (VVV-C0806)
• Six-Spoke 1.55" Single Internal Beadlock Wheel (Black) (VVV-C0807)
• Six-Spoke 1.55" Internal Beadlock Wheels (Gold) (VVV-C0808)
• Six-Spoke 1.55" Single Internal Beadlock Wheel (Gold) (VVV-C0809)
• Dome Spoked 1.9" Classic Beadlock Wheels (VVV-C0810)
• Vehement 1.9" Internal Beadlock Wheels (VVV-C0811)
• RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
• RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
• RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
• RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
• RC4WD Cali Off-Road Distorted 1.9" Beadlock Wheels (Z-W0295)
• OEM XJ 1.9" Beadlock Wheels (Chrome) (VVV-C0849)
• OEM XJ 1.9" Beadlock Wheels (Gunmetal) (VVV-C0850)
• RC4WD Ridler 645 1.9" Internal Beadlock Wheels (Z-W0305)
• RC4WD Walker Evans 501 Legend 1.55" Beadlock Wheels (Z-W0319)
• RC4WD Walker Evans 501 Legend 1.9" Beadlock Wheels (Z-W0318)
• BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (Z-H0016)
• RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels (Z-W0304)
• Rally 1.9" Beadlock Wheels (Gold) (Z-W0324)
• Rock Tamer 1.9" Beadlock Wheels (Z-W0321)
• RC4WD Enforcer 1.9" Beadlock Wheels (Red) (Z-W0323)
• RC4WD Rogue 1.9" Beadlock Wheels (Z-W0314)
• RC4WD Rogue 1.7" Beadlock Wheels (Z-W0315)
• RC4WD Rogue 1.55" Beadlock Wheels (Z-W0317)
• Compass M/T 1.55" Scale Tires (Z-T0186)
• RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
• RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
• Stamped Steel 1.7" 10-Oval Hole Wheels (White) (Z-W0311)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
• RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)
• Simi Snorkel for Gelande II D90/D110 (VVV-C0913)
• RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
• RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
• RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
• RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
• RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
• Ground Hawg II 1.55" 4.19" Scale Tires (Z-T0029)
• RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
• Rocky Country 1.55" Truck Tires (Z-T0022)
• RC4WD Rogue 2.2 Beadlock Wheels (Z-W0316)
• Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
• 1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
• TNK 2.2" Beadlock Wheels (4x) (VVV-C0986)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (4x) (VVV-C0987)
• TNK 2.2" Beadlock Wheels (2x) (VVV-C0988)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (2x) (VVV-C0989)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1013)
• Seren 2.2" Single Wheel (Silver) (VVV-C1014)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1015)
• Seren 2.2" Single Wheel (Black) (VVV-C1016)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1017)
• Burato 2.2" Single Wheel (Silver) (VVV-C1018)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1019)
• Burato 2.2" Single Wheel (Black) (VVV-C1020)
• Oxer Inner Fenders for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1081)
• Oxer Transfer Case Guard (D90/D110) (VVV-C1082)
• Steel Steering Guard for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (Pick-up/SUV) (VVV-C1083)
• Steel Steering Guard for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (Pick-up/SUV) (VVV-C1084)
• Steel Front Side Hood Diamond Plates for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1085)
• Steel Rear Bed Diamond Plates for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1086)
• Steel Diamond Tailgate Plate for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1087)
• Steel Tube Rollbar for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1088)
• Steel Tube Rollbar w/ Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1089)
• Front Window Roll Cage for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1090)
• Front Window Roll Cage w/ Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1091)
• Steel Roof Light Bar for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1092)
• Steel Roof Light Bar w/ Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1093)
• Steel Rear Window Guard for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1094)
• High Brake Light for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1095)
• Bed Mounted Spare Wheel and Tire Holder for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1096)
• Spare Wheel and Tire Holder for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-up/SUV) (VVV-C1097)
• Classic Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (VVV-C1116)
• Classic Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (VVV-C1117)
• Classic Front Winch Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (VVV-C1118)
• Classic Front Winch Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (VVV-C1119)
• Steel Push Bar Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1120)
• Steel Push Bar Front Bumper W/ Clear Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1121)
• Steel Push Bar Front Bumper W/ Yellow Flood Lights for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1122)
• License Plate Holder for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1123)
• Slot Mag 1.9" Wheels (Z-W0331)
• Slot Mag 1.55" Wheels (Z-W0332)
• Bandit Machined Front Grille for Tamiya King/Grand Hauler (Silver) (Z-S2095)
• Steel Tube Bed Cage for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (VVV-C1127)
• Steel Tube Bed Cage w/ Soft Top for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (Black) (VVV-C1128)
• Steel Tube Bed Cage w/ Soft Top for RC4WD Gelande II 2015 Land Rover Defender D90 (Pick-Up) (Tan) (VVV-C1129)
• Adventure Rooftop Tent Steel Rack for RC4WD Gelande II 2015 Land Rover Defender D90 (VVV-C1130)
• RC4WD Fuel Off-Road Cleaver 1.9" Dually Wheels (Front and Rear) (Z-W0330)
• RC4WD Poison Spyder Ricochet Rockers for 2015 Land Rover Defender D90 Body Set (Pick-up/SUV) (Z-S2097)
• Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
• OEM JK Internal Beadlock 1.9" Wheels (Z-W0336)
• OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black and Chrome) (Z-W0337)
• RC4WD Fuel Off-Road 1.55” Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
• Heritage Edition Stamped Steel 1.9 Wheels (Black) (Z-W0340)
• RC4WD Patriot Deepdish 1.9 Internal Beadlock Wheels (Z-W0343)
• Apio 1.55" Beadlock Wheels (White) (VVV-C1163)
• Apio 1.55" Single Beadlock Wheel (White) (VVV-C1164)
• Apio 1.55" Beadlock Wheels (Black) (VVV-C1165)
• Apio 1.55" SIngle Beadlock Wheel (Black) (VVV-C1166)
• Landies Vintage Stamped Steel 1.55" Beadlock Wheels (Rust) (Z-W0043)
• Heritage Edition Stamped Steel 1.9 Wheels (Grasmere Green) (Z-W0342)
• Heritage Edition Stamped Steel 1.9 Wheels (White) (Z-W0341)
• Rad 1.9" Aluminum Internal Beadlock Wheels (Black) (VVV-C1225)
• Rad 1.9" Aluminum Internal Beadlock Wheels (Silver) (VVV-C1227)
• Rad 1.9" Aluminum Internal Beadlock Single Wheel (Black) (VVV-C1226)
• Rad 1.9" Aluminum Internal Beadlock Single Wheel (Silver) (VVV-C1228)
• Helical Gear Set for 1/10 Yota Axle (Z-G0059)
• Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065)
• Stamped Steel 1.7" Beadlock SR5 Wheels (White/Black) (Z-W0066)
• Front Winch Bumper w/ Stinger for Defender 90 (Z-S2059)
• RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
• RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
• 1/10 Bed Mounted Tire Carrier (Z-S0759)
• RC4WD Center Line 1.9" Warrior Deep Dish Wheels (Z-W0010)



Metal Rod End Upgrades:

• M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)

Instruction Manuals:

• Gelande II RTR Instruction (Click here to download)
• Mirror Installation (Click here to download)

Press Information:


• Click here to download

Items of Interest: (not required for completion)

• Grease and Lubrication (Z-S1199) (Z-S1197)
• Double Sided Tape for ESC


Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

Do not over tighten screws otherwise you may strip the thread.

Requires 5mm Black Spacer with M3 Hole (Z-S0821) to install Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707) and

Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708).

Land Rover is a registered trademark of the Land Rover company. The Land Rover logo is property of Land Rover and used under license to RC4WD.
