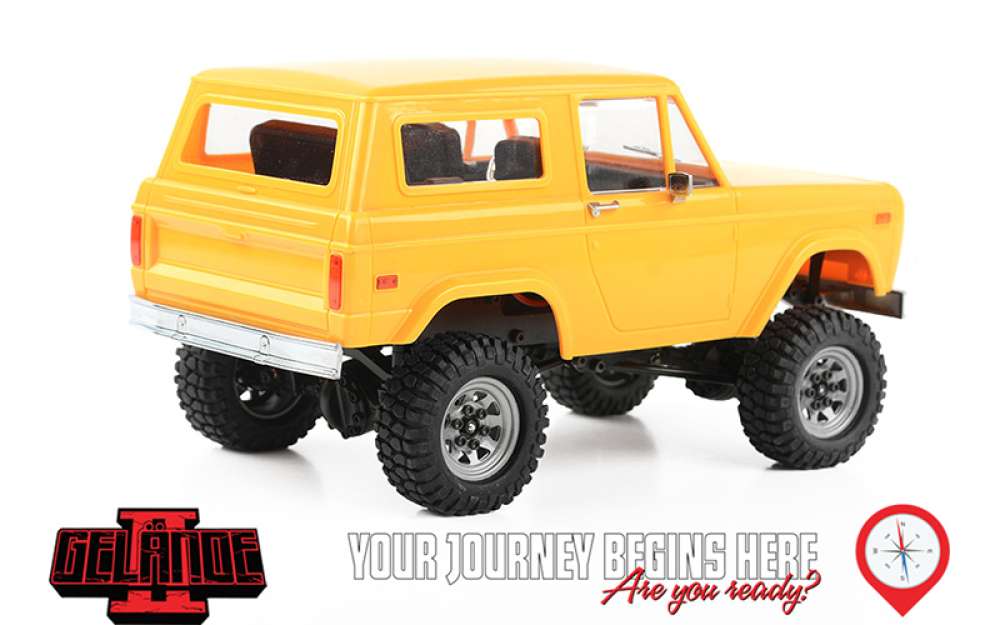

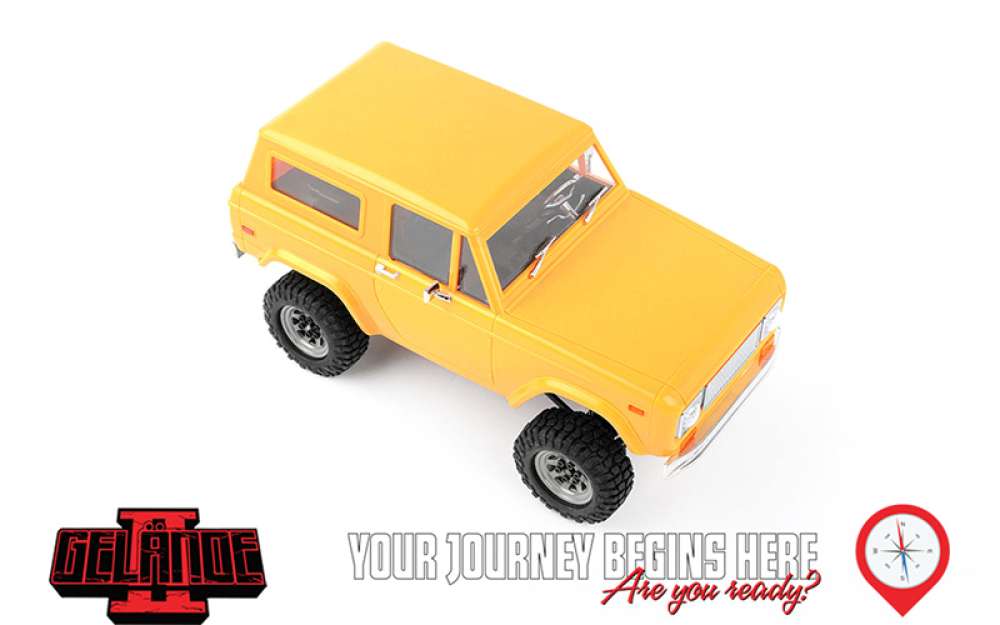

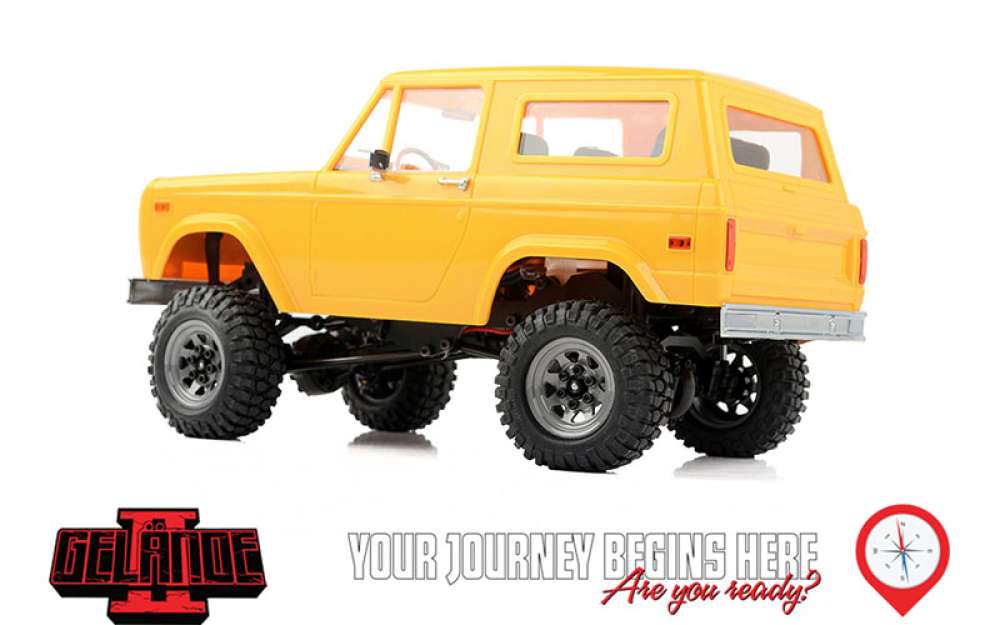

RC4WD 1/18 Gelande II RTR w/ Black Hawk Hard Body Set

RC4WD 1/18 Gelande II RTR w/ Black Hawk Hard Body Set

Experience the versatility and advanced design of the 1/18 Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

The G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new 1/18 Mini Transmission provides power to the 1/18 Yota II Axles.



The core of the G2 is built for the true off-road enthusiast. From emergency and expedition vehicles, down and dirty off-road rigs and even daily drivers, the G2 can be customized to pull off any look you choose. The G2 delivers on performance and looks to match the driver's identity.



The G2 comes with double triangulated 4 Link Front and Rear Suspension. The servo is mounted on the chassis out of view for a more scale appearance.



Are you ready for your off-road experience?


True to Scale Design And Aesthetics
Realistic Aluminum Ladder Frame Chassis
R5 1/18 Mini Transmission V2
1/18 Cast Front And Rear Axle Set
4 Link Front And 4 Link Rear Suspension
Rock Crusher 1.0" Micro Crawler Tires
Stamped Steel 1.0" Stock Beadlock Wheels (Plain)
9G Analog Metal Gear Micro Servo
The Ultimate Mini Scale Shocks (40mm)


All New R5 1/18 Mini Transmission V2

Total Gear Ratio: 5.5 : 1

Pinion Gear: 55P 10T

Gear Material: Hardened Brass and Steel

Case Material: Plastic Injection Molded

All New 1/18 Cast Yota II Axles

Ratio: 2.55 : 1

Width at Hex : 92mm

Case Material: Zinc Alloy

G2 Suspension

Double Triangulated 4 Link Front and Rear Suspension

Shock Absorbers

Ultimate 40mm Scale Shocks - Can not be Oil Filled

Wheels

Type: Stamped Steel 1.0" Stock Beadlock Wheels (Plain)

Hub: 7mm Hex

Width: 7mm

Back Spacing: 7mm

Bumpers

Machined Billet Aluminum, Light Weight

G2 Truck Dimensions

Wheelbase: 130.71mm (5.15")

Length: 223.67mm (8.81")

Width: 110.23mm (4.34")

Height: 114.97mm (4.53")

Ground Clearance: 28.71mm (1.13")

Final Drive Ratio: 112 : 1

Weight: 1.14lbs / 0.52kg

SUSPENSION

The G2 Chassis features a simple front mounted electronics plate for easy mounting of the XR2 Micro ESC/Receiver combo.

The G2 includes a set of RC4WD Micro Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The G2 Chassis is built from a quality design and features a machined billet aluminum ladder frame, 4 link suspension setup, scale shock hoops, chassis servo mounts, and hard body mounting points.

The Gelande II Black Hawk comes with a set of Plain Stamped Steel 1.0" Stock Beadlock Wheels. These feature a shiny clear coat finish, aluminum internal locking ring, and popular 6-lug design.

Every Gelande II needs a tough set of rock crawling tires and our Rock Crusher 1.0" Micro Crawler Tires are just that! Made from our advanced X3 soft compound, these tires deliver on both performance and scale look.

DETAILS

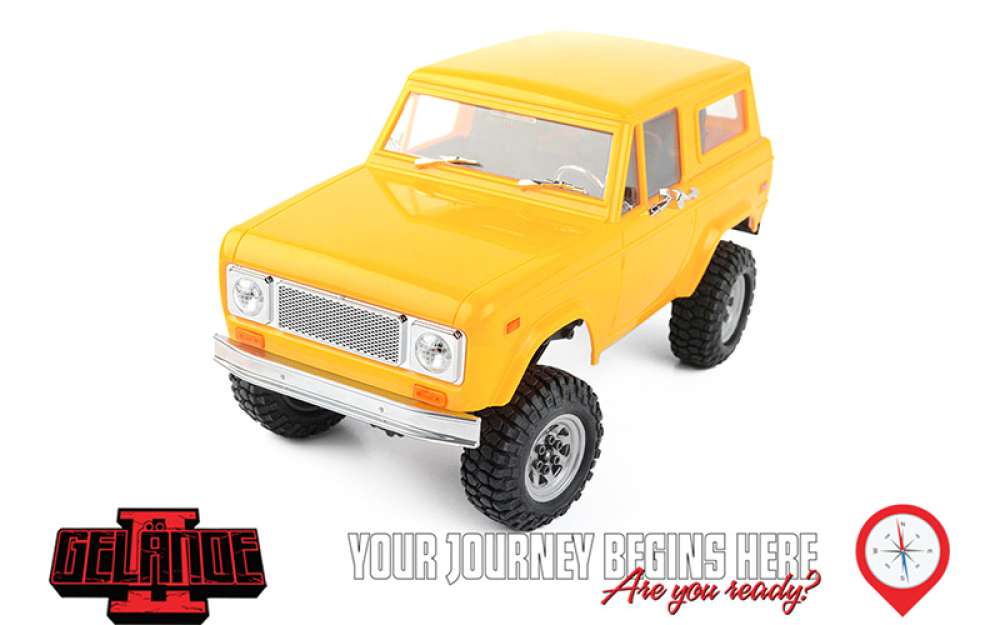

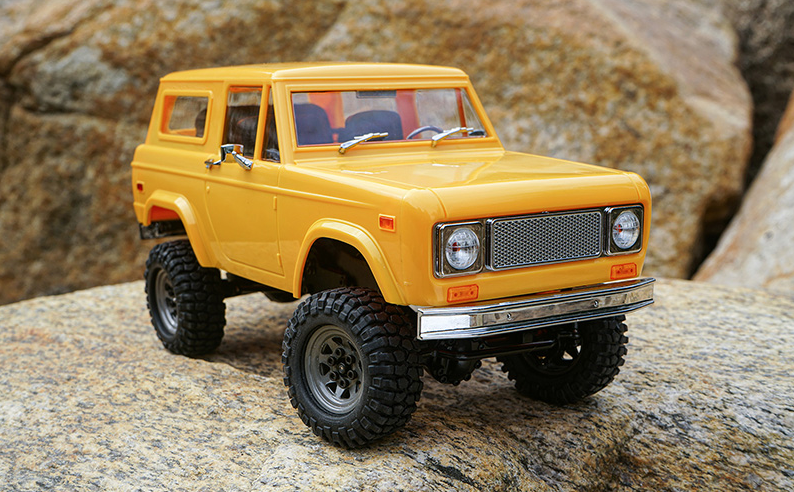

The G2 features the Black Hawk Scale Body Set. The Black Hawk body has an awesome assortment of scale details including chrome decals for the mirrors, door handles, vents and detailed grille to match the 1:1 vehicle.

Inspired by a classic, the Black Hawk Body Set closely resembles an iconic 4x4 from the past.

The Black Hawk Body Set is made of durable molded hard plastic, painted in a striking School Bus Yellow, and has a simple but realistic appearance.

The Black Hawk Body Set features a full detailed interior including a steering wheel, seats, gear shifter, handbrake and a detailed dashboard. It's all here to bring your build to the next level.


The crisp lines and subtle styling are all captured with the model. Detailed aesthetics are included like clear front lenses for signal lights.

DRIVETRAIN

The 1/18 G2 includes a quality 2-in-1 Micro ESC + Receiver paired with the XR2 Micro Radio system and is ready for your next scale adventure

The G2 includes the new R5 1/18 Mini Transmission V2. Packed with scale detail, the R5 features a high quality plastic exterior and heavy duty gears for durability.

The Driveshafts for the G2 feature bulletproof steel universals and a new high quality steel shaft for great driveline angles and durability on the trail.

The most scale accurate axles on the market, the RC4WD 1/18 Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, new lower mounting points and a compact offset pumpkin in the front.

It’s ALL in the box! Everything you need is provided to get you on the trails today!

What's Included:

• 1x RC4WD 1/18 Gelande II RTR w/ Black Hawk Hard Body Set

Replacement Parts:

• Low CG Battery Tray for the 1/18th Mini Gelande (Z-S1900)
• Stamped Steel 1.0" Stock Beadlock Wheels (Plain) (Z-W0345)
• R5 1/18 Mini Transmission V2 (Z-U0036)
• Punisher Shafts 1/18 (42mm - 50mm / 1.57" - 1.96") 3mm Hole (Z-S1684)
• The Ultimate Mini Scale Shocks (40mm) (Z-S1686)
• 9G Analog Metal Gear Micro Servo (Z-E0077)
• Rock Crusher 1.0" Micro Crawler Tires (Z-T0027)
• XR2 Ultimate Micro Radio and ESC/Receiver (Z-E0098)
• RC4WD 7.4V 850mAh 2S LiPo Battery w/ Balance Plug (Z-E0110)
• RC4WD 2s Lipo Balance Charger (Z-E0111)

Optional Parts:

• Rock Crusher 1.0" Micro Crawler Tires (Z-T0027)
• Rok Lox 1.0" Micro Comp Tires (Z-T0028)
• Rage 1.0" Beadlock Wheels (Z-W0061)
• RC4WD Mickey Thompson Baja Claw TTC 1.0" Micro Crawler Tires (Z-T0067)
• RC4WD Interco Super Swamper TSL/Bogger 1.0" Micro Crawler Tires (Z-T0069)
• Chubby Mini 3 TON Scale Jack Stands (Z-S0731)
• RC4WD Raceline Monster 1.0" Beadlock Wheels (Z-W0252)
• RC4WD Goodyear Wrangler MT/R 1.0" Micro Scale Tires (Z-T0161)
• RC4WD Milestar Patagonia M/T 1.0'' Micro Crawler Tires (Z-T0164)
• Stamped Steel 1.0'' Stock Beadlock Wheels (White) (Z-W0111)
• Stamped Steel 1.0" Stock Beadlock Wheels (Silver) (Z-W0263)
• RC4WD Stocker 1.0" Beadlock Wheels (Z-W0275)
• RC4WD Classic 8-Hole 1.0" Beadlock Wheels (Z-W0280)
• RC4WD Breaker 1.0" Beadlock Wheels (Z-W0277)
• JK 1.0 Scale Beadlock Wheels (Z-W0279)
• RC4WD 1.0" Competition Beadlock Wheels (Z-W0278)
• RC4WD 1/18 Scale Warn Front and Rear Hubs (Z-S1921)
• XR2 Ultimate Micro ESC/Receiver (Z-E0099)
• RC4WD Old Man Emu Nitrocharger Sport Shocks for 1/18th Gelande II (Z-D0076)
• RC4WD Interco Super Swamper TSL Thornbird 1.0" Scale Tires (Z-T0203)
• RC4WD BFGoodrich T/A KM3 1.0" Tires (Z-T0200)
• Falken Wildpeak M/T 1.0" Tires (Z-T0201)
• BFGoodrich T/A KR3 1.0" Tires (Z-T0202)
• Blast Beadlock 1.0" Wheels (Z-W0334)
• RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.0" Wheels (Z-W0335)
• Stamped Steel 1.0" Stock Beadlock Wheels (Plain) (Z-W0345)
• RC4WD Interco Super Swamper 1.0" TSL/Bogger Scale Tires (Z-T0211)
• Mud Basher 1.0" Scale Tractor Tires (Z-T0210)
• Yota II 1/18th Steering Links (Z-S0585）
• Yota II 1/18th Link Mount (Z-S0586)
• RC4WD Black Hawk Body Set for 1/18 Gelande II (Z-B0126)


Replacement Hardware:

• Steel Socket Head Cap Screws M1.6 x 4mm (10) (Z-S1232)
• Steel Socket Head Cap Screws M1.6 x 5mm
• Steel Socket Head Cap Screw M2 X 4mm (10) (Z-S0922)
• Steel Socket Head Cap Screws M2 X 5mm
• Steel Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
• Steel Socket Head Cap Screws M2 x 8mm (Z-S0750)
• Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
• Steel Socket Head Cap Screws M2.5 X 8mm (10) (Z-S0829)
• Nylock Nuts M2 (Black) (Z-S0906)

Items of Interest (not required for completion):

• Hex Drivers (1.5mm, 2mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• 4mm Nut Driver (OD less than 5.5mm)
• Instant glue / Plastic Cement (preferably non whitening)
• Cross Phillips Screwdrivers (small)
• Grease and Lubrication (Z-S1199) (Z-S1197)
• Double Sided Tape for ESC

Instruction Manual:

• Click here to download

Press Information:

• Click here to download

Notes:

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
