RC4WD 1/10 V8 Scale Engine
RC4WD 1/10 V8 Scale Engine

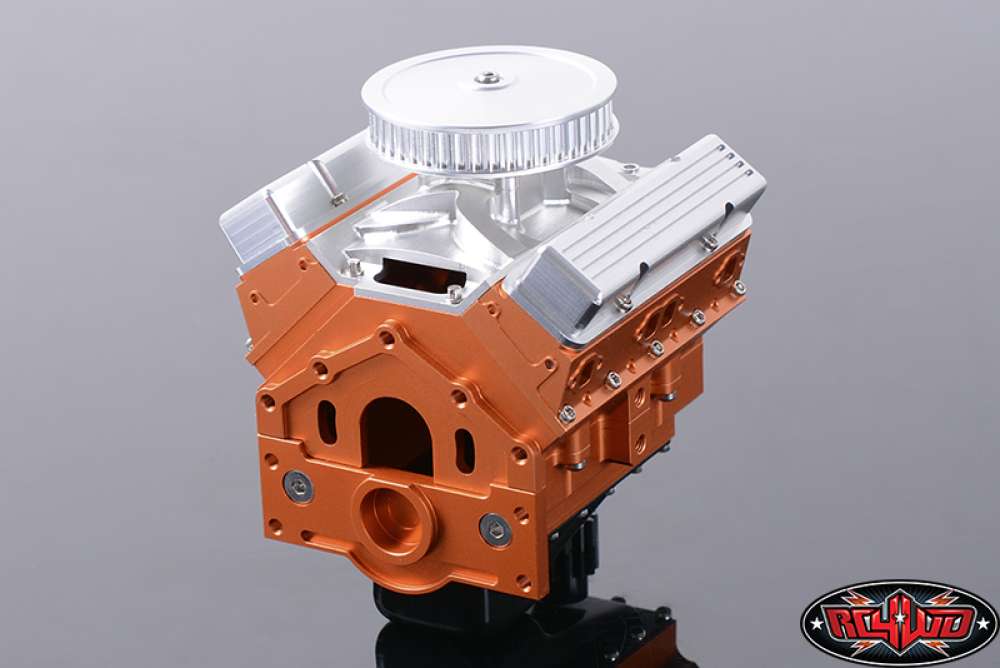

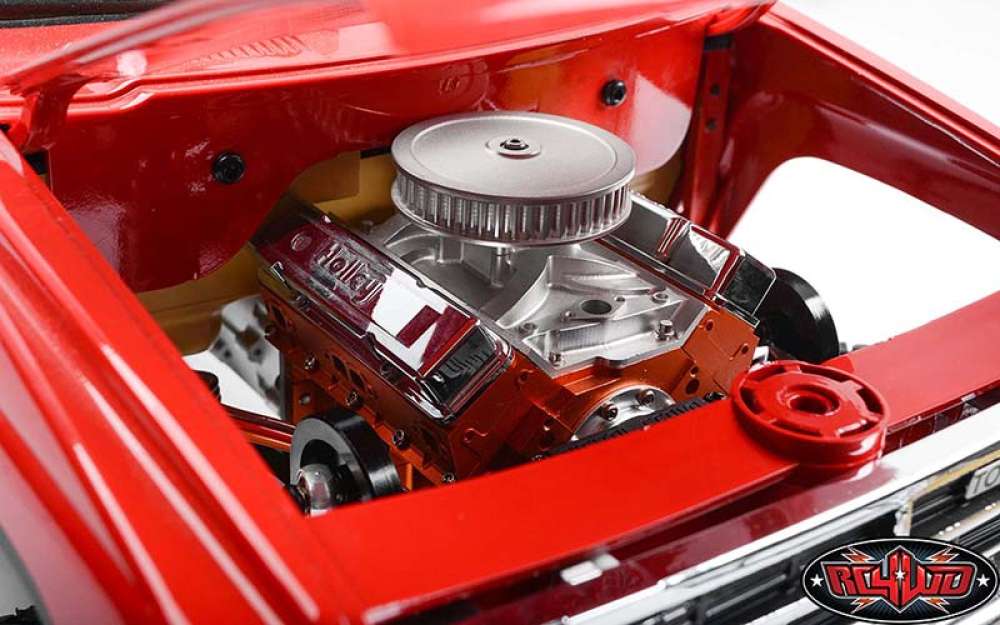

Highly detailed and super realistic. This allows you to hide your 540 motor inside the scale engine to make your build even more realistic. Pair it with the R4 transmission and you have an unbeatable scale combination for your next truck build.

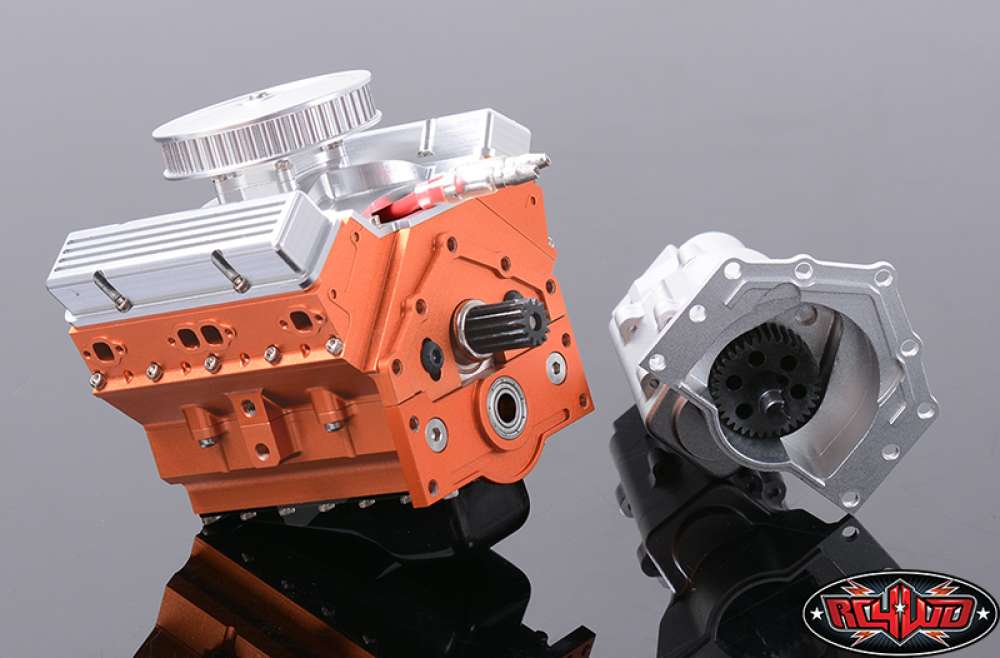

Shown with RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031) and 540 motor for example (Not Included)

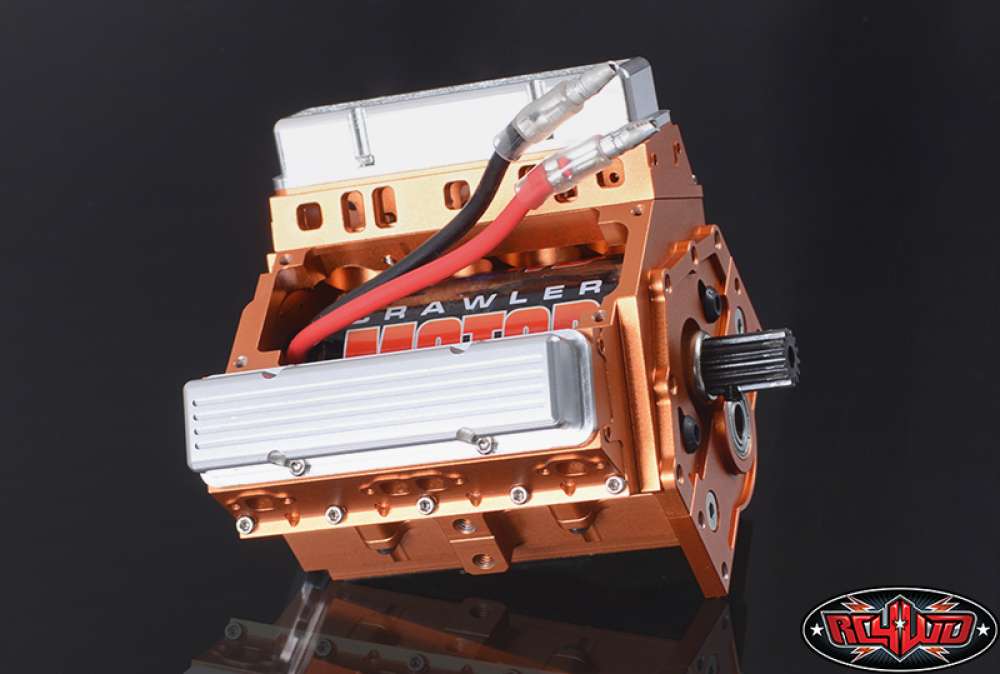

Shown installed with 540 Crawler Brushed Motor 45T (Z-E0004) for example (Not Included)

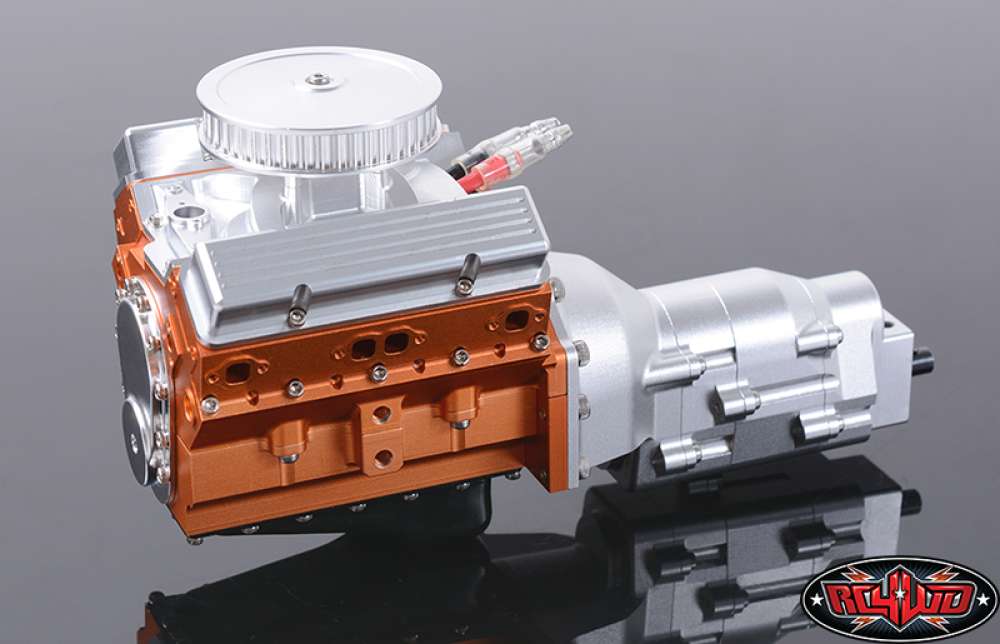

Shown installed with RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031) and 540 Crawler Brushed Motor 45T (Z-E0004) for example (Not Included)

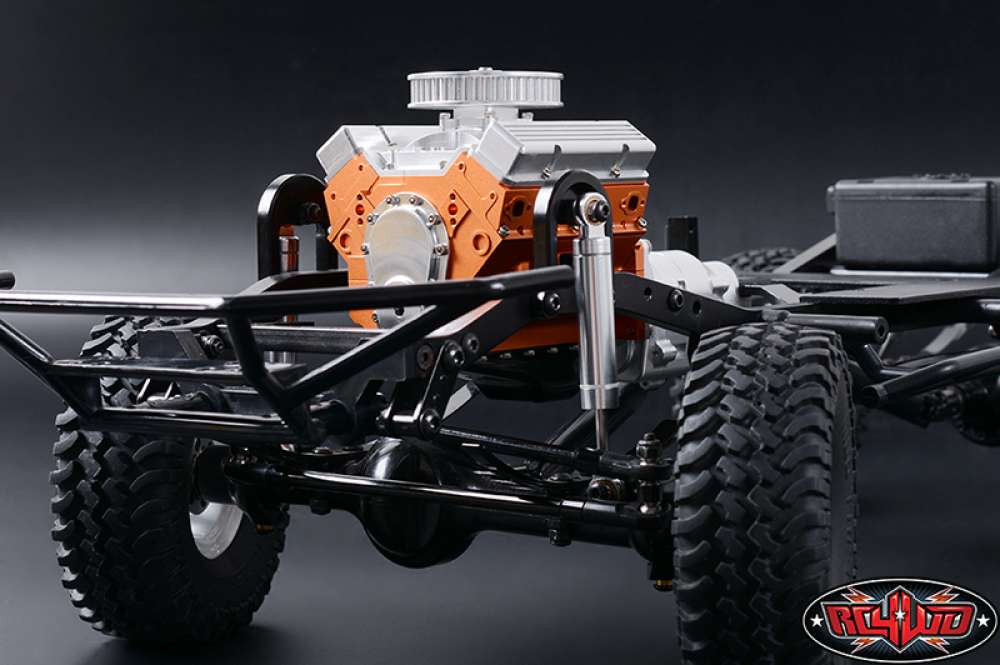

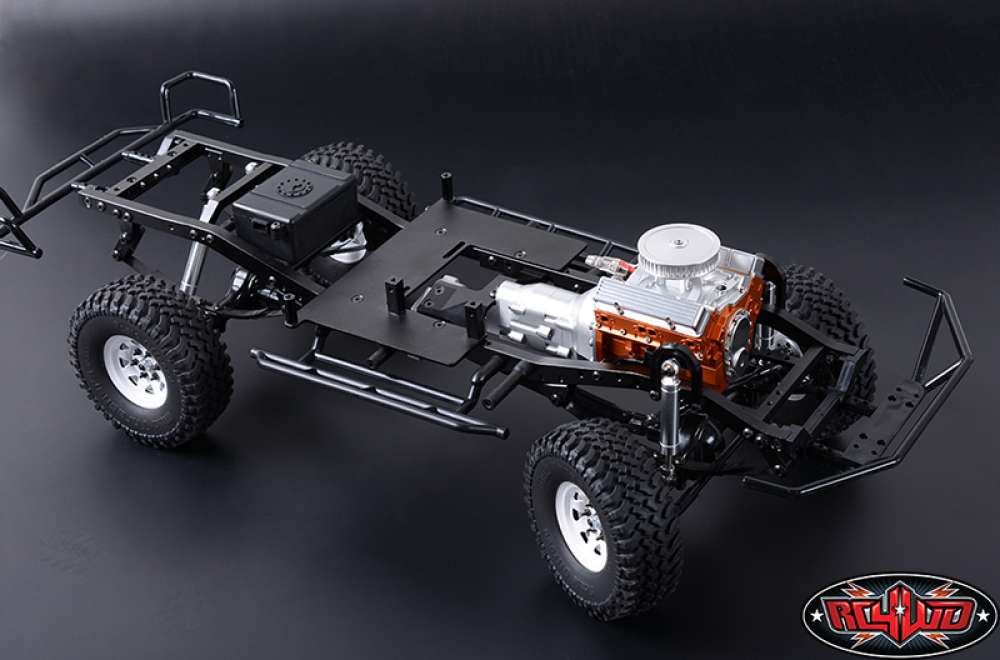

Shown installed on RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031), 540 Crawler Brushed Motor 45T (Z-E0004) and Trail Finder 2 V8 Engine Mounts (Z-S1239) for example (Not Included)

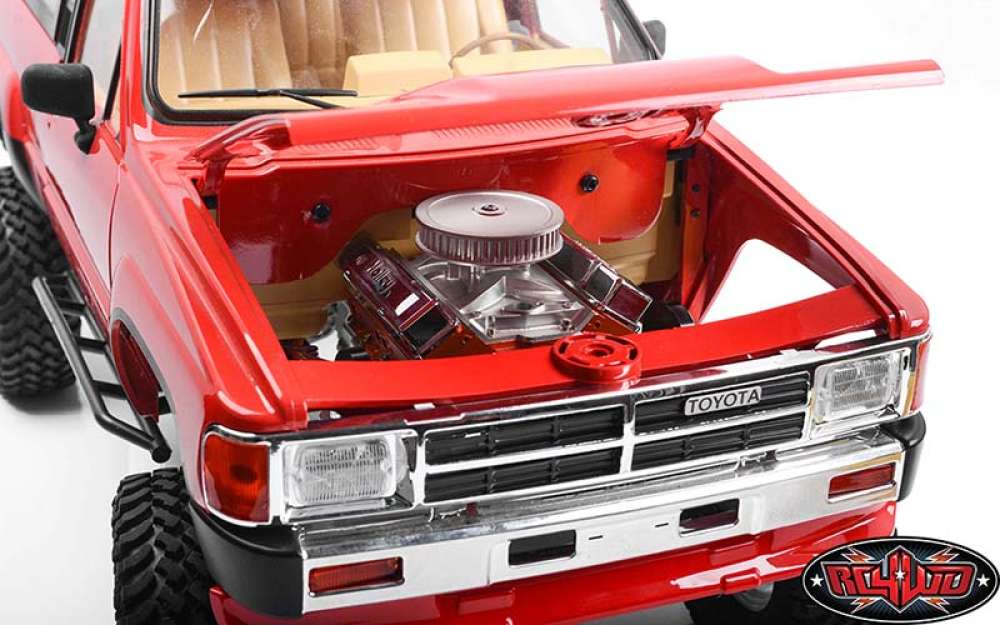

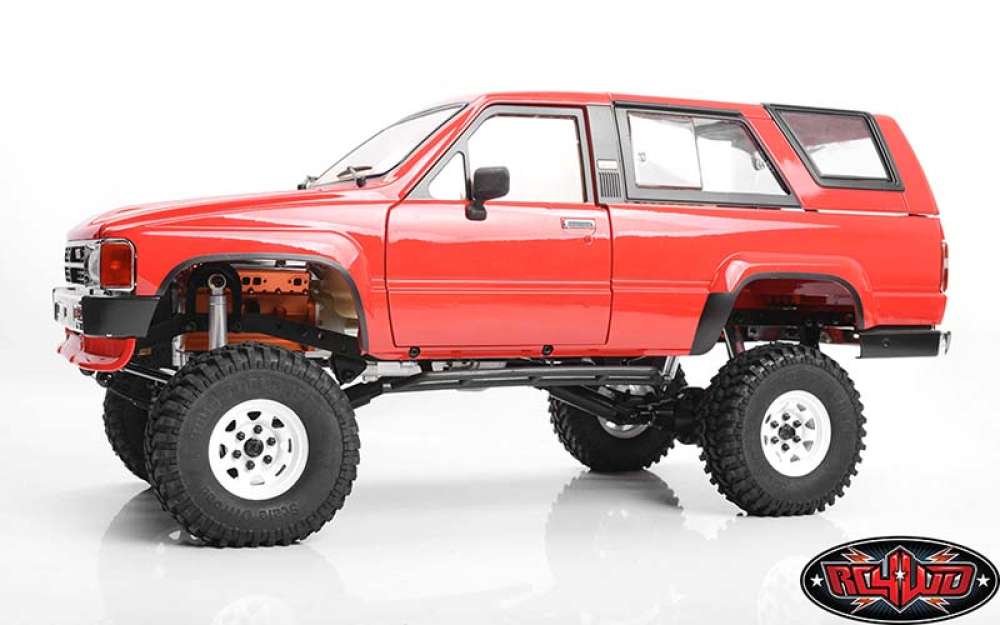

Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) with RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167) (Shown painted Red) for example (Not Included)

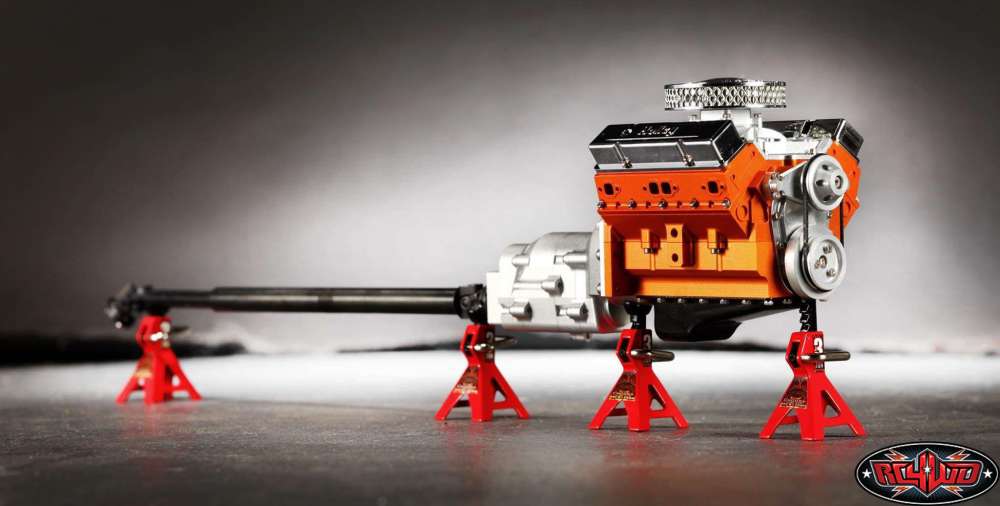

Shown with RC4WD 1/10 V8 Scale Engine (Z-S1043), RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031) and Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included).
Shown with R4 Transmission (Not Included)
Specification
Model information
Specifications:
- Billet Aluminum
- CNC Machined
- Total Height: 3.34in / 84.9mm
- Total Width: 2.77in / 70.4mm
- Total Length: 2.74n / 69.6mm
- Weight: 6.45oz / 183g
What's Included:
- 1x RC4WD 1/10 V8 Scale Engine
- 1x Single Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)
Required Parts
- RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
- 540 Crawler Motor (Motors)
Optional Parts:
- Trail Finder 2 V8 Engine Mounts (Z-S1239)
- RC4WD 1/10 Holley® Chrome Valve Covers for Scale V8 Engine (Z-S1500)
- RC4WD Pulley Kit w/Belt for V8 Scale Engine (Z-S1537)
- RC4WD "Holley®" V8 Air Cleaner (Z-S1662)
- RC4WD Pulley Kit w/Belt for V8 Scale Engine (Z-S1537)
- Distributor and Rubber Tube for V8 Motor (Z-S1738)
- Thermostat Housing for V8 Motor (Z-S1739)
- RC4WD Water Pump for V8 Scale Engine (Z-S1719)
- Plastic Exhaust Headers for V8 Motor (Z-S1775)
- RC4WD 1/10 Holley® M/T Valve Covers for Scale V8 Motor (Z-S1748)
- RC4WD Inglese 8-Stack Induction System for V8 Motor (Z-S1829)
- RC4WD Edelbrock 1/10 Scale V8 Motor Dress up Kit by REC (Z-S2150)
Replacement Hardware:
- 50 x M1.6 x 4mm SHCS (Silver)
- 4x RC4WD Miniature Scale Hex Bolts (M2 x 6mm) (Silver) (Z-S1196)
- 10 x Socket Head Cap Screws M2 X 6mm (10) (Z-S0994)
- 1x Socket Head Cap Screw M2 X 8mm (10) (Z-S1234)
- 2x Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S1271)
Notes:
- Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) with Optional Engine Mounts
- This product can't be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565)
- Works with brushed 540 motors and 540 sized brushless motors. Some brushlesss motor brands may not fit inside.
- Mojave body requires minor modification to clear the faux air cleaner.
Instruction Manual:
- Click here to download RC4WD R4 Transmission & V8 Engine Assembly Instructions
- Click here to download TF2 & V8 Engine Fitting Instructions
