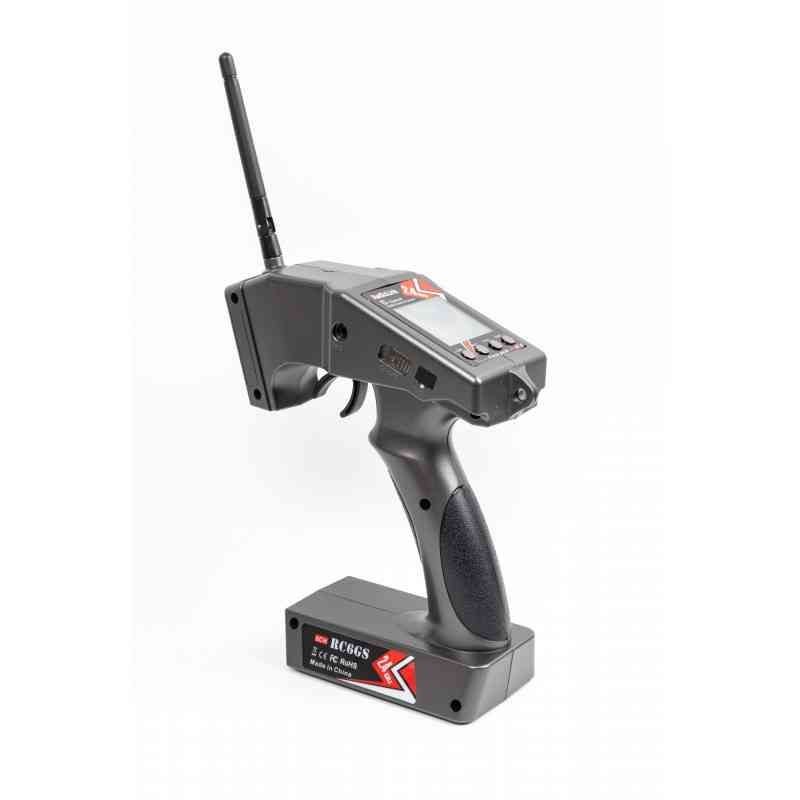

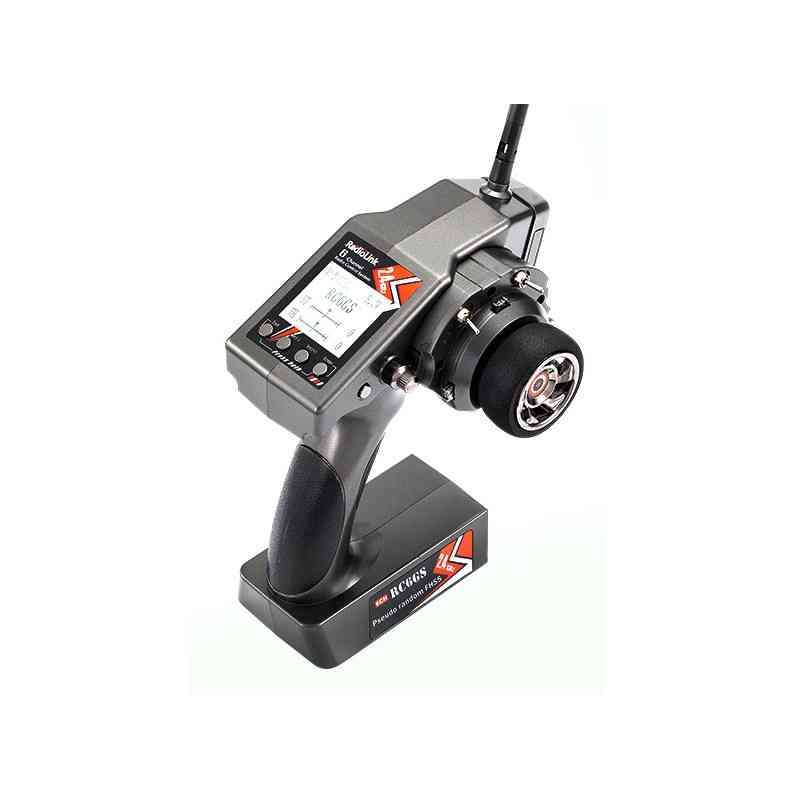

Radio Link RC6GS 6 Channels Transmitter for Cars and Boats
600 Meters Ground Distance
With the same FHSS spread spectrum of AT9S and 67 channels, pseudo-random frequency hopping makes RC6GS V2 have the superior anti-interference ability both at the same frequency band and different frequency bands.
The control distance is up to 600 meters.
Real-time Telemetry of Model Battery Voltage
Telemetry is capable of RSSI, receiver, and model battery voltage.
RSSI and receiver voltage data will display once binding complete.
The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R7FG/R8F, no extra module needed.
Telemetry of maximum 6S battery supported.
6 Channels for Multiple Types of Models
RC6GS V2 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car and other types of RC cars or boats.
Specification
Model information
| RC6GS V2 Dimensions： | 174.8*116.4*224.2mm(6.88"*4.58"*8.83) |
| R7FG Dimensions： | 40.5*22*14mm（1.59*0.87*0.55”） |
| Battery Case Dimension： | 89*59*25mm (3.5”*2.32”*0.98) |
| Frequencies Band: | 2.4GHz ISM band（2400MHz~2483.5MHz） |
| Channel Quantity: | 6 |
| Applicable Model Types: | Car (Incl. Crawlers/Tanks/Caterpillars)/Boat/Robot |
| Modulation Mode: | GFSK |
| Spread Spectrum Mode: | FHSS, 67CH pseudo random frequency hopping |
| Storage Model Quantity: | 10 |
| Antenna Length: | 106mm(4.17”) |
| Control Range: | 600 meters(1968.5ft) (Maximum range tested in unobstructed areas free of interference) |
| LCD Screen: | 128*64 resolution, LCD backlight |
| RC6GS V2 Operating Voltage: | 4.8-15V, 6pcs of AA batteries or a 2S-4S LiPo battery |
| RC6GS V2 Operating Current: | 80~120mA (Depending on power supply） |
| R7FG Operating Voltage: | 4.6-10V |
| R7FG Operating Current: | 30mA |
| Transmission Power: | <20dbm |
| Channel resolution: | 4096 with regular jitter of 0.5us |
| Low Voltage Alarm: | Yes, when less than 4.6V or customizable on 2S-4S battery |
| Compatible Receiver: | R7FG(Std)，R6FG,R6F, R8EF, R8FM,R8F,R4FGM, R4F |
