HOBBY WING QUICRUN WP 1080 brushed ESC (2-3S) for Rock Crawler
QR WP 1080 suits BEST brushed ESC for 1/8 - 1/10 Rock Crawler
THE GAME-CHANGER!

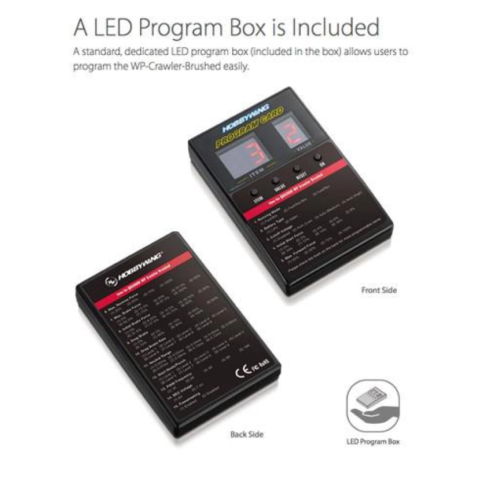

+ LED Programming Box (Free)
- Water-proof and dust-proof for all-weather Rack Crawler & boat application
- Water-proof and dust-proof, suitable for all-weather races.
- Small size, with built-in capacitor module.
- 100% Waterproof
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more
- Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America
Specification
Model information
| QUICRUN Brushed ESC | WP 1080 Rock Crawler BRUSHED ESC | WP 1060 BRUSHED ESC |
| p/n | 30112750 | 30120201 |
 |  | |
| Waterproof | Yes | Yes |
| Dual Mode | No | No |
Fwd Cont. / Peak Rev Cont. / Peak | 80A / 400A 30A / 180A | 60A / 360A 30A / 180A |
| Car Applicable | 1/8 - 1/10 Rock Crawler and Tank or Boat | 1/10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank |
| Motor Limit | Brushed Motors 3S LiPo or 9S NiMH: ≥16T or RPM<2000@7.4V | Brushed motor 2S Lipo or 6 NiMH: T ≥12T or RPM<3000 @7.2V |
| Battery | 2-3S LiPo or 5-9S NiMH | 2-3S Lipo or 5-9 NiMH |
| BEC Output | 6V/7.4V @ 3A (switch mode) | 2A/5V (Linear Mode) |
| PWM Frequency | Adjustable 1K/2K/4K/8K/16K | 1KHz |

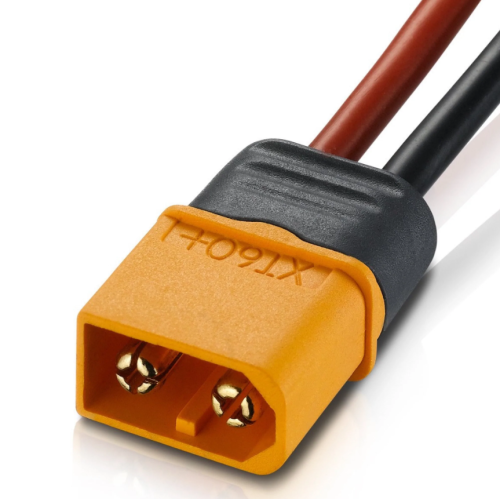

| Wires | 14AWG-200mm w/ XT60 Connector | 14AWG-200mm w/TAMIYA Connector |
| Size/ Weight | 36.5(L)* 32(W)*18(H) (without fan) | 36.5(L)*32(W)*18(H) |
| External Program Port | External Program Port Available | N/A |
| Programming | LED Program card | Jumper Cap |
| Cooling Fan | Without cooling fan | - |
| Weight* | 58.5g | 39g |
What's in the box?
- ESC
- LED program card
- Bonus accessories (heat sink, etc)
- User's manual
- Decal
