Castle Creations Mamba Micro X Crawler Editions ESC WITH 1406-1900KV Sensored Motor Combo
THE MAMBA MICRO X HAS BEEN DISCONTINUED. IT HAS BEEN REPLACED BY THE IMPROVED MAMBA MICRO X2.
Putting the X in Extreme! The Mamba Micro X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the lightweight, small footprint Mamba Micro X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC with the same motor. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation. Use of an external BEC is recommended if running a high power or digital servo.

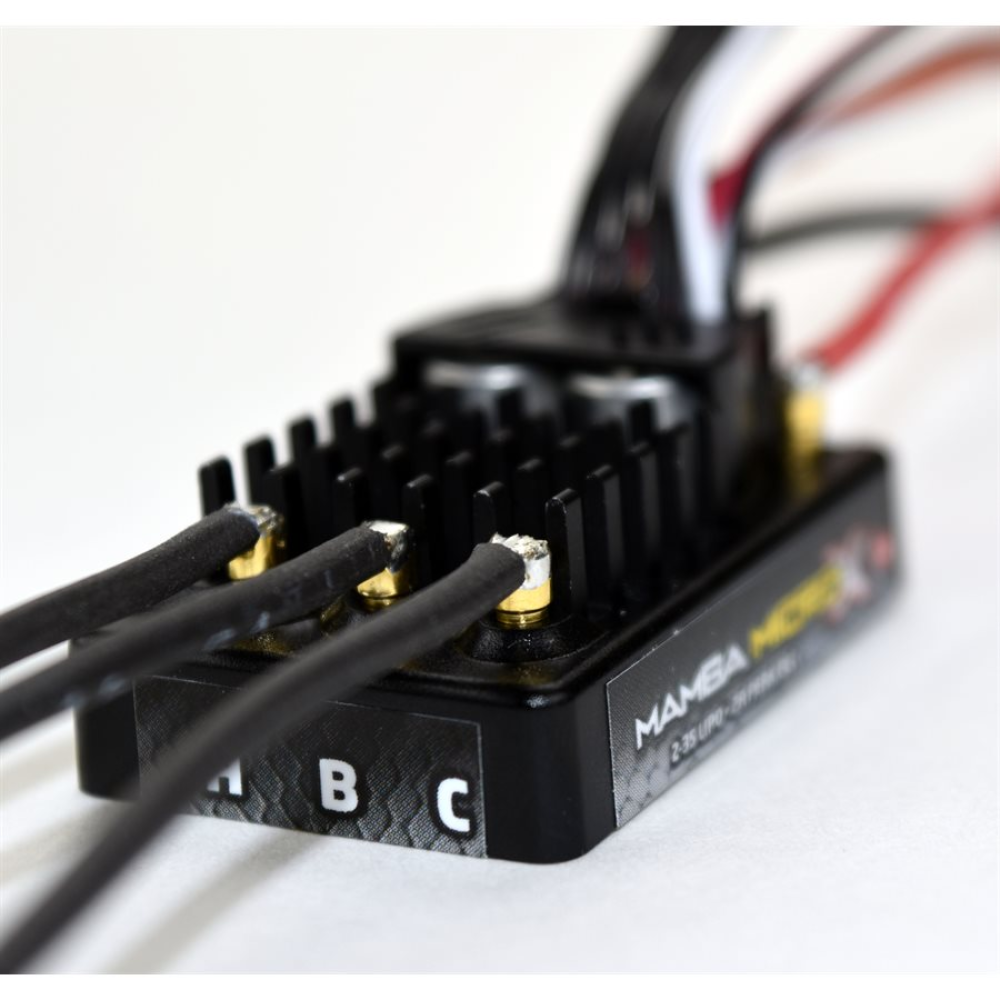

This SPECIAL EDITION of the Mamba Micro X includes solder posts with 16 AWG wire for the motor connection; it also includes the matching 4mm female bullets to pair with the included 1406-1900kv sensored brushless motor.
The Auxiliary Advantage.
Mamba Micro X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!
Telemetry Capability
The Mamba Micro X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Package Includes:
- Crawler Edition Mamba Micro X w/solder posts
- 1406-1900kv sensored brushless motor
- 210mm length sensor wire (for sensored operation)
- Castle Sensor Harness adapter
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guides
- Castle decal sheet
Specification
Model information
- Specifications:
- Input Voltage Range: MIN: 2S LiPo
MAX: 3S LiPo (12.6V)
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V. Use of external BEC is recommended if using a high torque/speed digital servo; the CC BEC or CC BEC 2.0 Waterproof are recommended
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but can be disabled for racing
On/Off Switch: Yes, waterproof*
Cooling Fan: No
Size: Length: 1.6" (41mm)
Width: 0.75" (19mm)
Height: 1.1" (28mm)
Weight (without wires): 1.20 oz. (34g)
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes Castle sensor harness.
Items Needed for Operation: Battery Connector required, Castle 4mm polarized Connectors, Deans Ultra Plugs, or Traxxas Power Connect are recommended.
Product Use Statements:
1. Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.
2. Recommended battery capacity is at least 1500mAh and 25C. Castle recommends running the highest mAh that will fit in your vehicle and the highest C rating you can afford.
3. The Crawler Edition Mamba Micro X has solder posts for the motor connections; includes 13 gauge wire with 4mm female bullets that connect directly to the included 1406-1900kv motors and the battery input wires are bare. You must solder the connector to the wires on the ESC. See Items Needed for Operation for recommendations.
4. Application Guidelines: Low speed crawling or trail running in vehicles weighing up to 8lbs. If you're looking for a more aggressive setup, like rock racing and extended hill climbing it is recommend to run the Mamba X ESC with the same motor.
5. Recommended Motors: Combo includes 1406-1900kv sensored brushless motor.
6. Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style; 4lbs for more aggressive driving styles.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable: Yes
Tech Notes: *Although the Micro X is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Motor specs
Input Voltage Range: 2S-3S LiPo
Kv: 1900
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Optional 5mm rotor replacement available.
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - Coming Soon
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Application Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style like rock crawling and trail running;
4lbs for more racing and aggressive driving styles.
Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs. - Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
