Traxxas 1/10 TRX-4 Ford F-150 High Trail Edition
RM2,799.00
This is Traxxas TRX-4 1/10 Ford F-150 Ranger XLT High Trail Edition 4X4 Trail Truck RTR Brown Version EP w/ TQi 2.4GHz Radio. The Traxxas lineup of exciting and capable High Trail TRX-4® models is expanding with the all-new 1979 Ford® F-150® truck.
Description

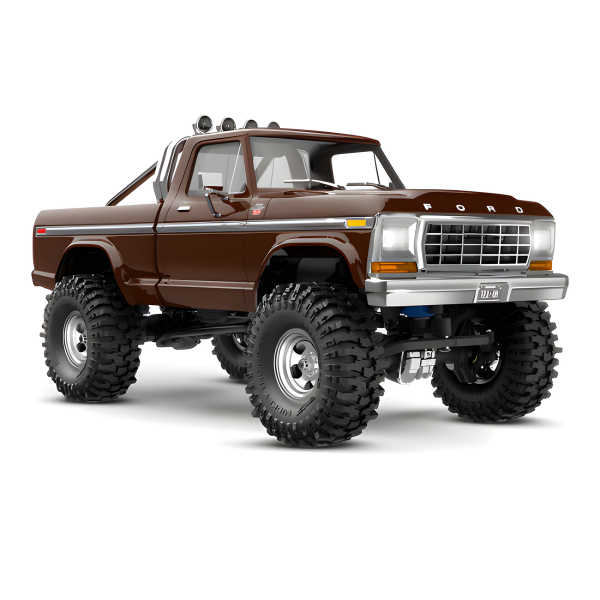

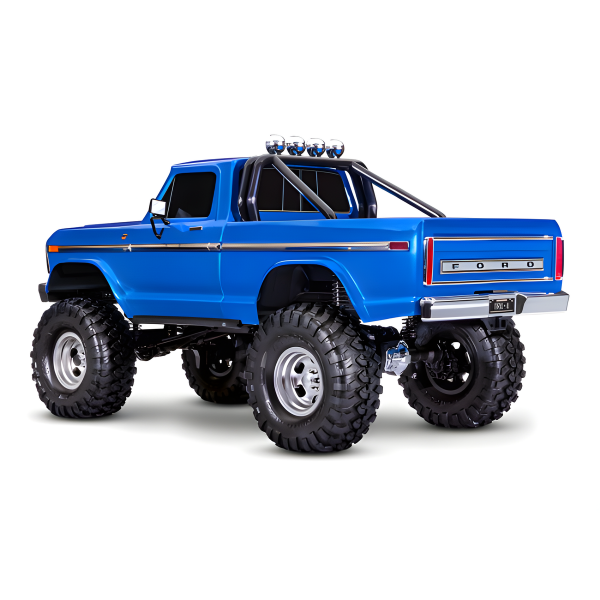

Traxxas TRX-4 High Trail RC Crawler with ’79 Ford F-150 Body
The Traxxas TRX-4 1/10 High Trail Edition RC Crawler with ’79 Ford F-150 Ranger XLT Truck Body has been designed to offer scale performance and adventure. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed 79 Ford F-150 Ranger XLT body stands over an inch taller than the standard TRX-4 chassis. The F-150’s extended wheelbase further enhances the TRX-4’s legendary off-road capability for better performance on the trail. To further the appearance, this truck uses the Traxxas Clipless Body Mounting for added scale realism. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and extreme durability.
This High Trail Edition TRX-4 uses portal axles, 110mm threaded shocks and a lift kit for extreme ground clearance. Oversized Canyon Trail tires are mounted to chrome 2.2″ wheels to improve both performance and ground clearance. When the going gets tough, use your transmitter to shift into low range for incredible 4-wheel drive pulling torque. Shift into high range for blasting down the trail. Traxxas gives you the versatility to lock and unlock the front and rear differentials to suit your driving needs directly from your transmitter. Leave the differentials unlocked for relaxed driving on the trail with smooth, tight turning and better handling at high speeds. When the trail gets technical, lock the front and rear differentials, or just the front, for superior grip over extreme terrain.
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 30.1 × 18.5 × 18.9 in |
| Color | Blue, Brown |
Model Specs:
Name: TRX-4 Ford F-150 High Trail Edition
Type: Trail / Crawler
Skill Level: 1
Chassis: Extended steel ladder frame
Scale: 1/10
Weight: 7.34 lb (3.33 kg)
Length: 22.30 inches (566 mm)
Width: 10.60 inches (270 mm)
Front Track: 10.60 inches (270 mm)
Rear Track: 10.60 inches (270 mm)
Height: 10.82 inches (275 mm)
Wheelbase: 13.23 inches (336 mm)
Center Ground Clearance: 4 inches (99 mm)
Driveline: Shaft-driven 4WD
Transmission: 2-speed high/low, remote shifting
Differential Type: 4 gear, remote locking
Gear Pitch: 32 pitch
Steering Servo: 2075X metal gear, digital high-torque waterproof
Radio System: TQi 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm
Features:
- Officially Licensed 1979 Ford F-150 Ranger XLT Body
- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights, tail lights, and roll bar
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode – 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires

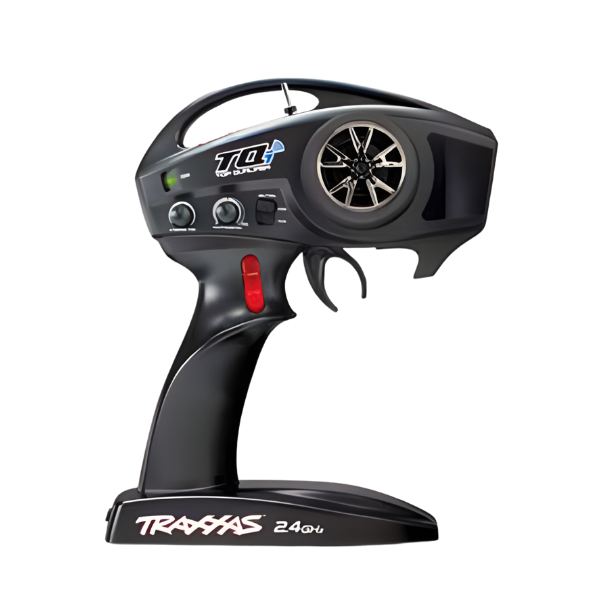

- TQi 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug
- Extended Wheelbase
- Long 336 mm wheelbase for improved stability
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Oversize Wheels and Tires
- 2.2″ slotted mag wheels wheels with hub inserts
- Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
What’s In The Box:
- TRX-4, Ready-To-Explore model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- BatteriesTRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
